ToolkitRC M6D
A true pocket powerhouse, the M6D includes an optimized heat dispersing system to dissipate high power heat in no time! You will find an easy-to-navigate system, integrated USB interface, and lots of cool features that make the M6D an excellent charger.
| Input Voltage | 7-28V DC |
| Dimensions | 98x68x35mm |
| Balance Accuracy | <0.005V |
| Current Drain (Balancing) | 800mA |
| Discharge Current Range | 0.1-3A per channel |
| Input Current | 30A |
| LiPo/LiIo/LiFe | 1-6S |
| Charge Power (Max) | 500W |
| Discharge (Max) | 12W |
| Regenerative Discharge (Max) | 500W |
| Cell Count (NiCd/NiMh) | 1-16S |
| Pb Battery Cell Count | 1-10S |
| PC Connectivity | USB (cable included) |
| USB Charging Port | 2.1A @ 5V DC |
| Weight | 220g |
| Charge Current Range | 0.1-15A per channel (0.1-25A synchronous) |
ToolkitRC M6D ManualCustomer Reviews
Very well constructed. The user interface is very intuitive/easy to use. Good detailed information is displayed during the charging process. So far it’s working out well for me…
still working on case so don't know yet
We've just started going through the menus to understand the flexibility. So far it will meet our needs, but the manual is very poorly written. It's obviously a poorly interpreted English translation from some other language without a thorough review by keen US eye.
Must have for charging multiple batteries

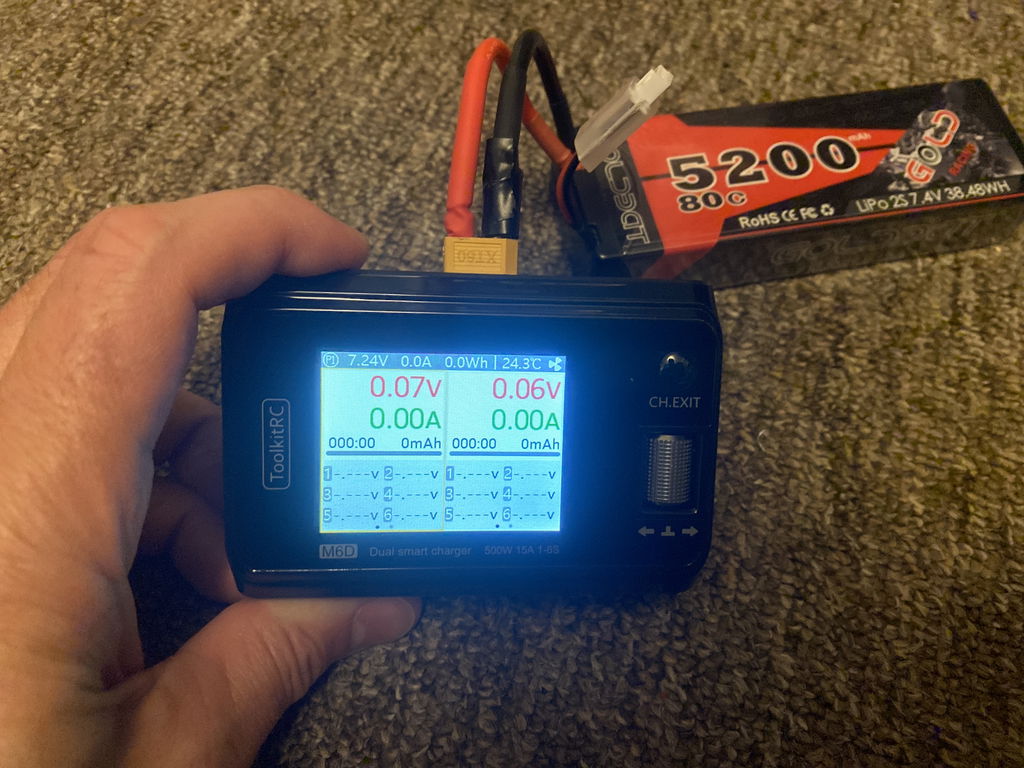

I'm using this as a field charger and this is awesome. Plugged into my car I can set the minimum input voltage to 10.5 volts so I don't have to worry about draining my car battery too low. 500W output is more than I'll need but great charger. I really like that this measures internal resistance. I've retired a couple packs because I can see that the resistance of once cell is higher than all the others. Super easy to use and monitor lipos. I wish the colored outline of each channel was easier to see so you could see which channel you were in a little better but that's a minor complaint. Definitely buy this charger.
