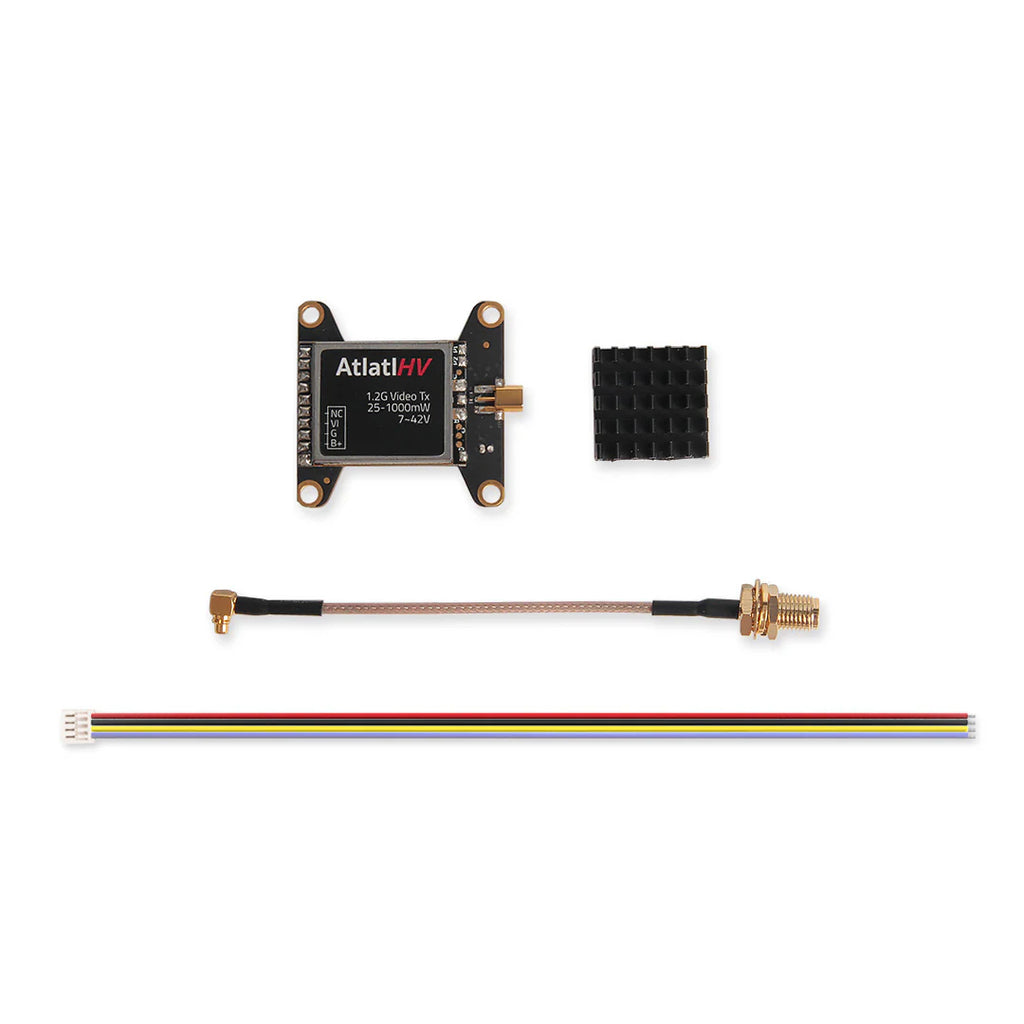

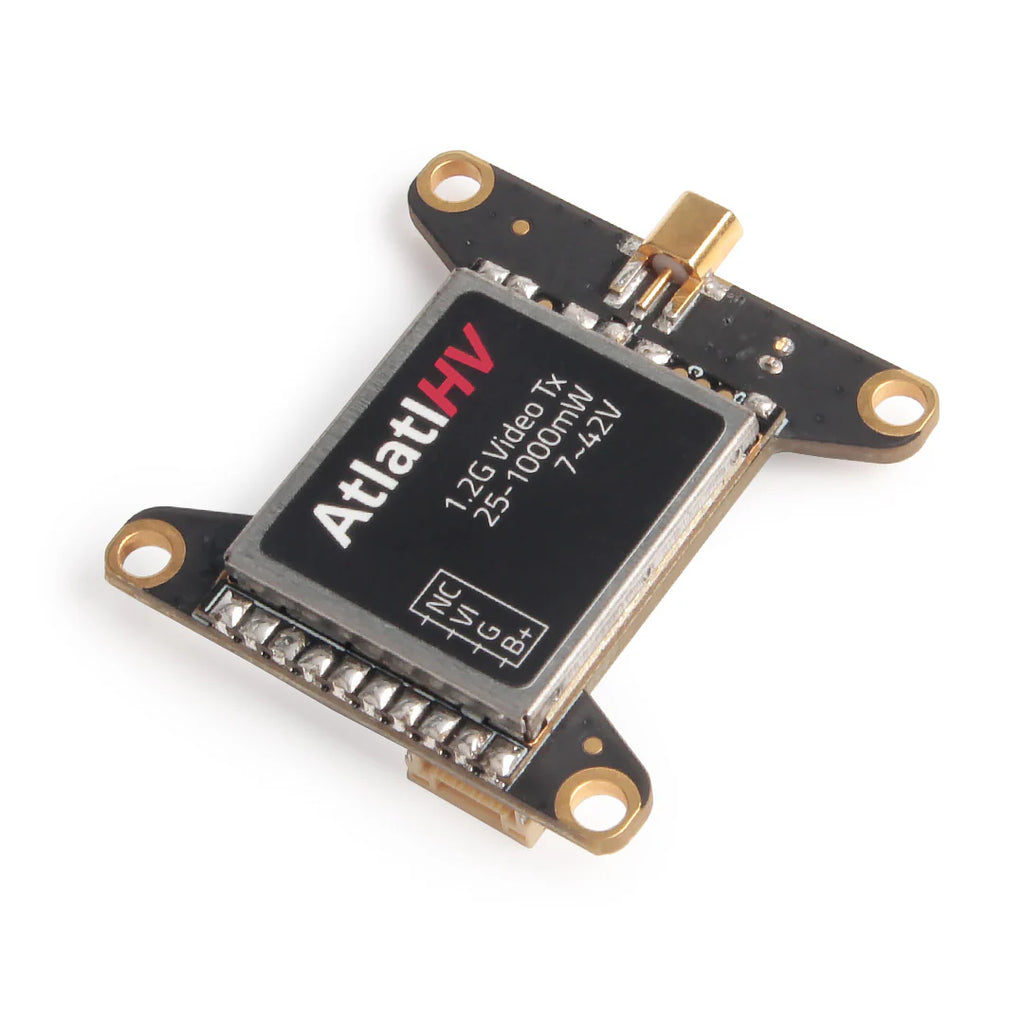

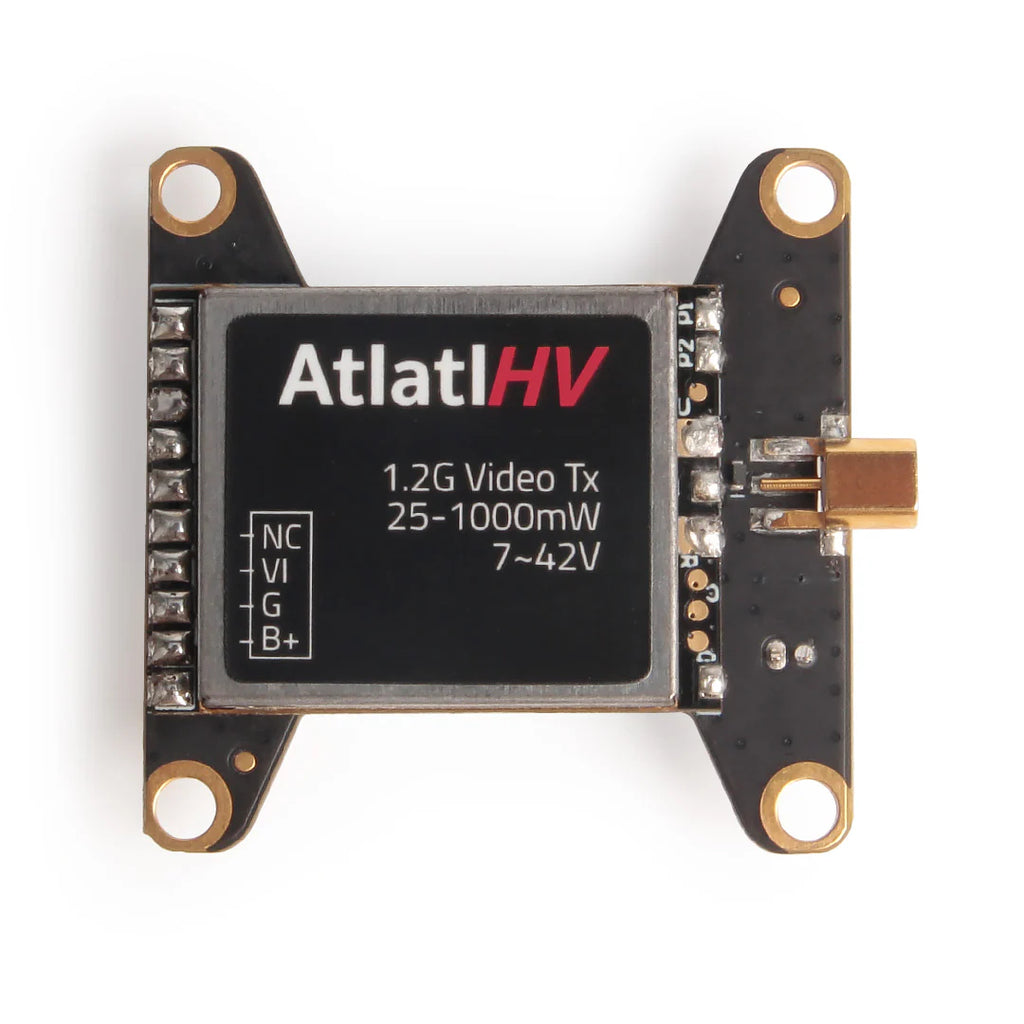

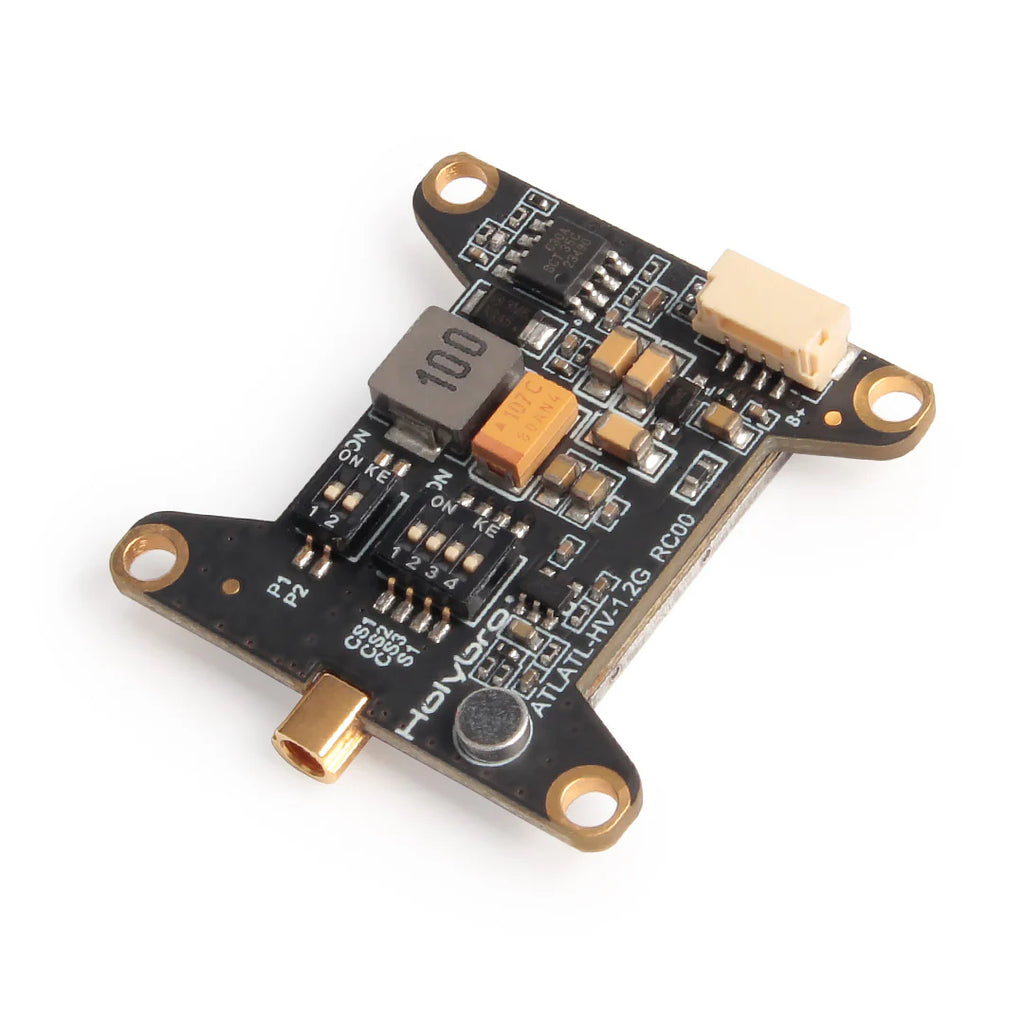

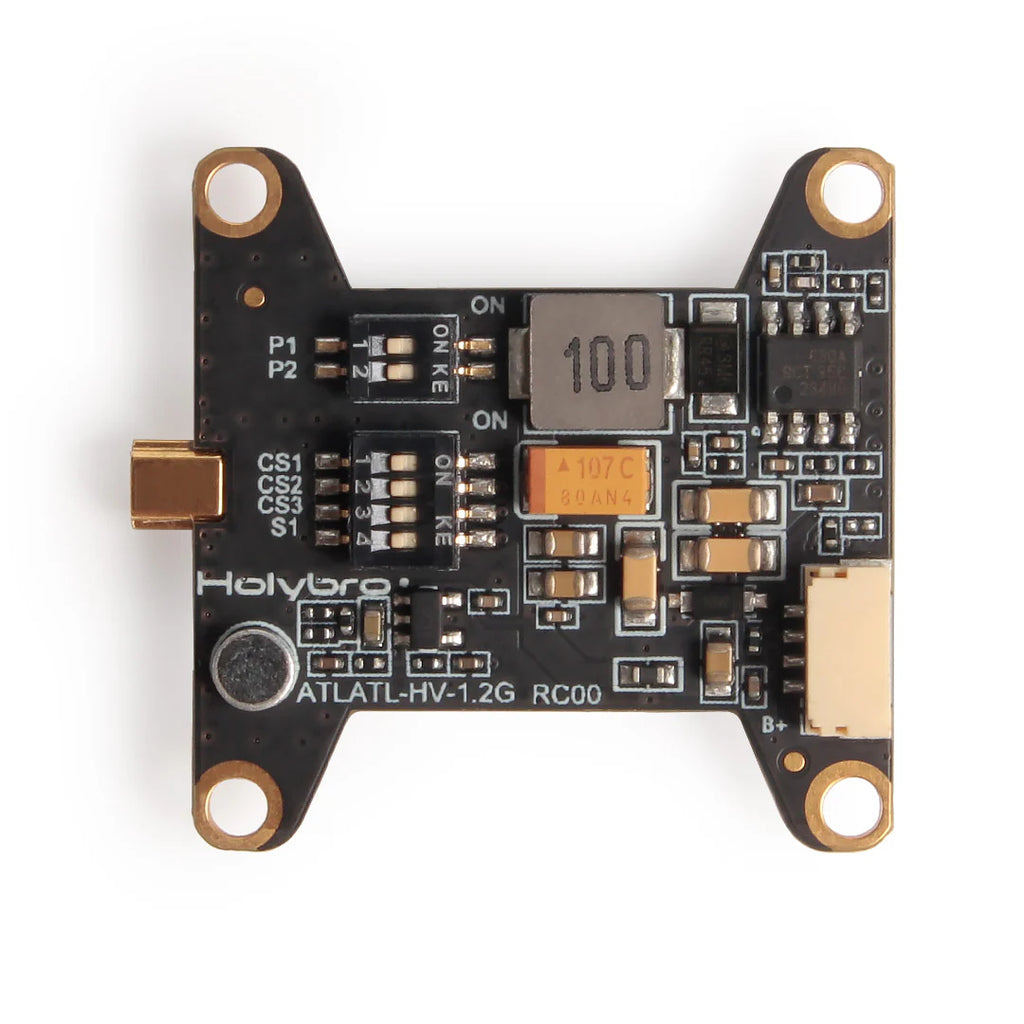

Holybro Atlatl HV 1.2GHz Video Transmitter
The Atlatl HV 1.2GHz 1W VTX is a low-frequency video transmitter compared to the standard 5.8GHz frequency band. It has excellent diffraction ability and has stronger anti-interference and penetration. Images are clearer and more stable, the transmission distance is longer, and it is more suitable for long-range and various complex environments.
Features
- Supports up to 9 frequency Channels.
- Variable transmit power: Pit/25/200/1000mw
- Pit Mode allows you to power up safely without the risk of knocking other pilots out of the air.
- Onboard microphone, so you can listen to your motors while you fly, no matter how far away you fly.
- Standard 30.5 x 30.5mm mounting holes, allows you to mount the Atlatl directly in your flight controller stack.
NOTE: An antenna must be installed properly before power is applied to the transmitter. Powering on without a correctly installed antenna may easily burn the transmitter. Power spikes from other components such as ESC's can also damage the transmitter if powered directly from battery voltage. Such damage will not be covered under warranty.
Video Transmission Legality: The use and operation of this product in the USA and many other countries may require a license. Some countries may not allow its use at all. In the USA you must have a HAM radio license to use this transmitter above the 25mW power level. It is the responsibility of the end user to comply with all applicable laws and regulations of their government.
Power | PIT/25/200/1000mW |
Input Voltage | 7-42V DC |
Dimensions | 30.5x30.5mm mounting |
Connector (Antenna) | MMCX |
Frequency | 1.2GHz, 9 Channels |
Weight | 9.3g (VTX only) |
