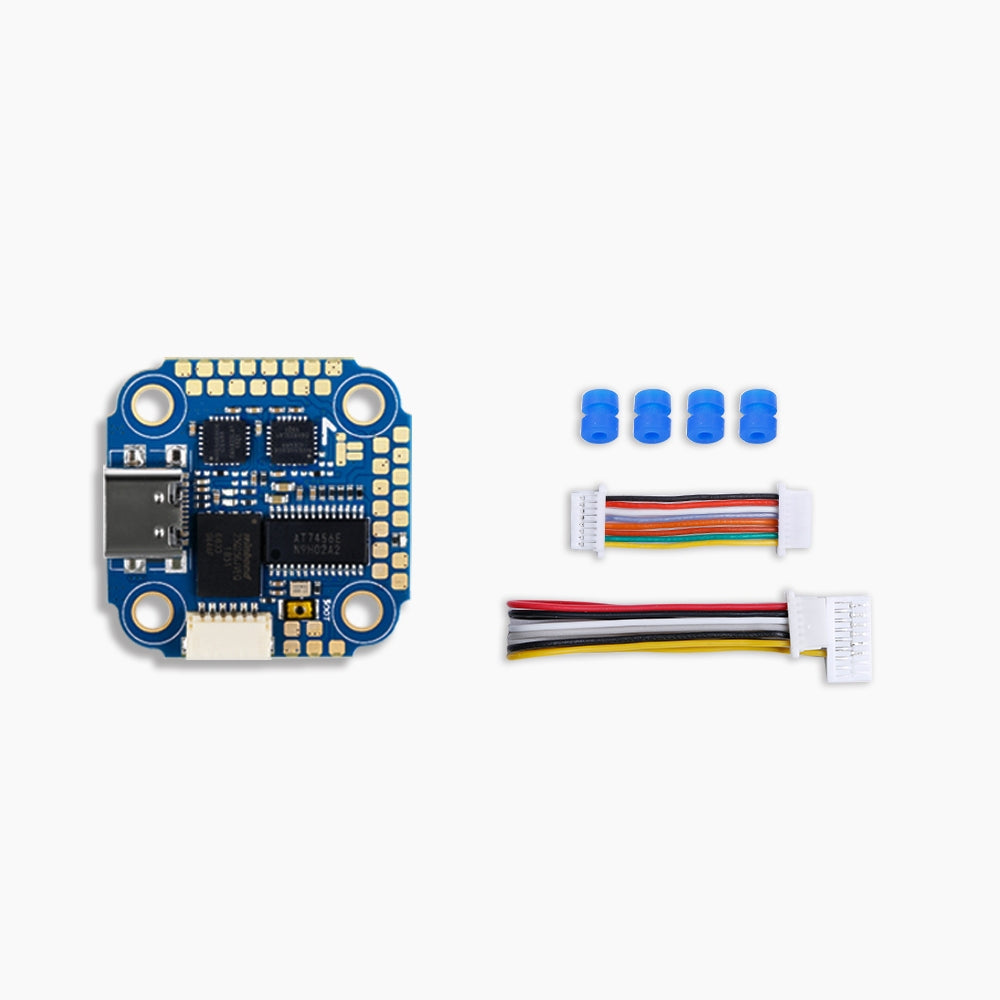

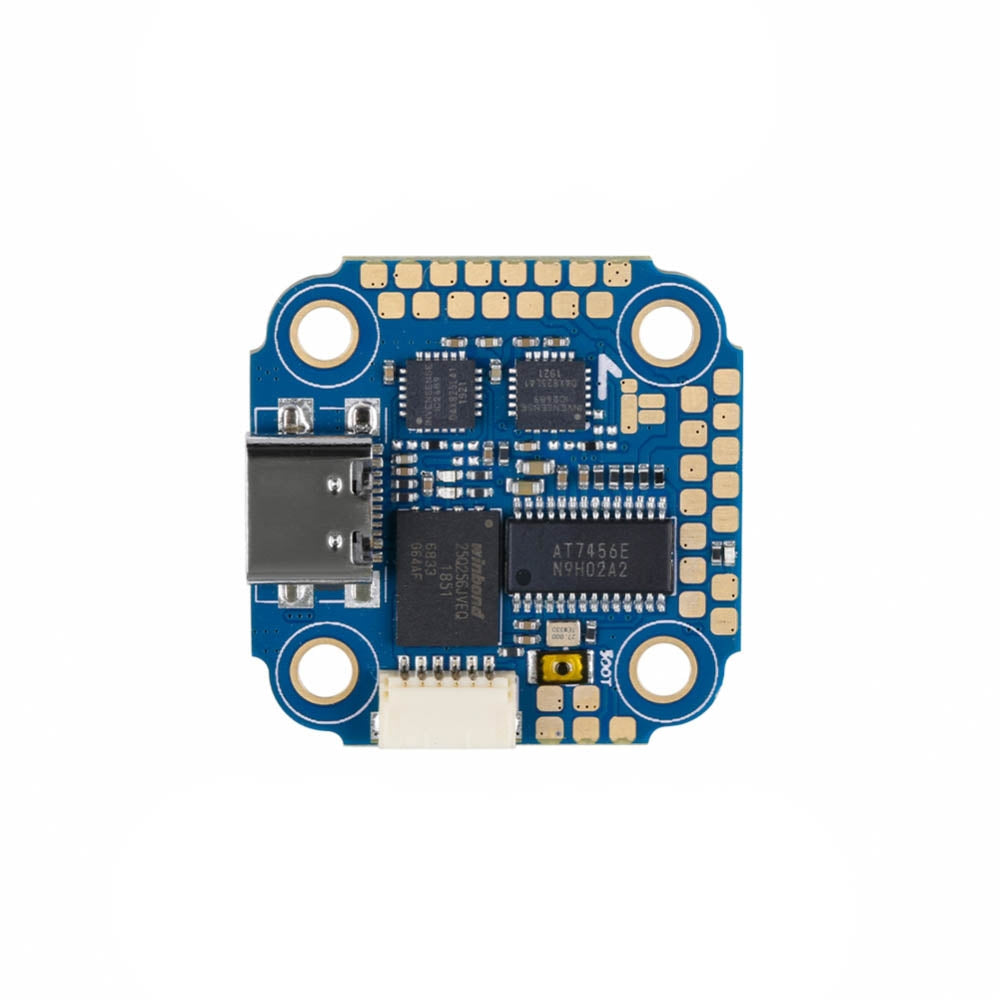

iFlight SucceX-D Mini F7 TwinG Flight Controller
iFlight SucceX-D Mini F7 TwinG Flight Controller
iFlight SucceX-D Mini F7 TwinG Flight Controller
Click to zoom in

iFlight SucceX-D Mini F7 TwinG Flight Controller

AC-IF7DJIM
Innovative twin gyro system is ready for your DJI HD system
Rs. 6,000.00

The SucceX-D Mini F7 is designed to work seamlessly with DJI’s new HD FPV system. To make things even simpler, the DJI Air unit can just be plugged into the FC with the included wire harness. In addition, we added the popular and reliable USB Type-C instead of Micro USB and therefore the same standard than your DJI module.

But the real magic of this flight controller lies in its twin gyro configuration. The TwinG uses two identical gyros oriented side by side with one offset 90 degrees from the other. Betaflight uses gyro fusion to blend and average the information from both gyros to send a much cleaner signal to the PID loop controller! That means less noise and fewer oscillations across the throttle band without adding any delay! Betaflight software filters can be lowered in most cases as well, which brings a significant decrease in delay.

With plenty of processing power and UARTS, this is also the perfect flight controller for long-range GPS builds. And the TwinG configuration makes it the perfect FC for builds like macro quads, cinematic filming rigs and X-class racers that are a bit trickier to tune.
Read More
Read Less
Dimensions 29x29mm (20x20mm mounting)
Input Voltage (Max) 2-6S LiPo recommended, 8S maximum
Weight 6.1g
3-Axis Gyroscope and Accelerometer 2x ICM20689
MCU 216MHz STM32F722

Customer Reviews

Based on 4 reviews
50%
(2)
25%
(1)
25%
(1)
0%
(0)
0%
(0)
M
Micah Edmunds
Easy to install

Perfect fit, tune, and set up is on point in BF. I just wish they included the mounting screws.

S
Seth Heerschap
Works as advertised.

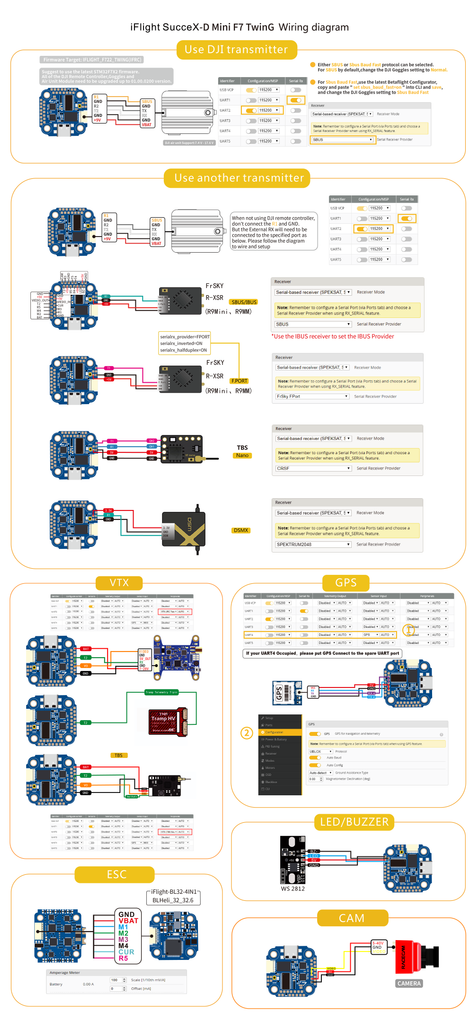

My iFlight Nazgul Evoque FC shorted out and I had to get a replacement. This one works fine. The only thing that would be nice is a higher resolution wiring map, but I able to manage.

G
Gregory Turner
This is a great flight controller.

I use this flight controller in my 3”gecko. Flies awesome, easy to solder with big pads.

B
Brandon
Iflight Twing G f7 Mini 20x20

I finally got the flight controller as a replacment for a FC that had a bad gyro causing noise on pitch. I installed this flight controller. I set it up in betaflight, i set the battery current scale to 100 like the instructions say. Even though it came out of a ESC with a onboard Shunt and was accurate at 170. During the first flight, I noticed the amps were not correct. 35amps at idle. While flying it only got up to 50 or 60amps. I have sense tried everything to calibrate it. No matter what number you put in, you get 35amps at idle. Besides not having a current reading, thr flight controllet is really nice, unfortunately, I cannot tell what I am pull8ng for amps. Or total mah. I have built over 10 quads, and have never had this happen, where a prior flight controller works fine if plugged back in and monitor (current reading) unfortunately this one is not working. Other then that, its a great flight controller. Dual gyro fusion, both work flawlessly. Very pleased besides the fact. -Brandon
