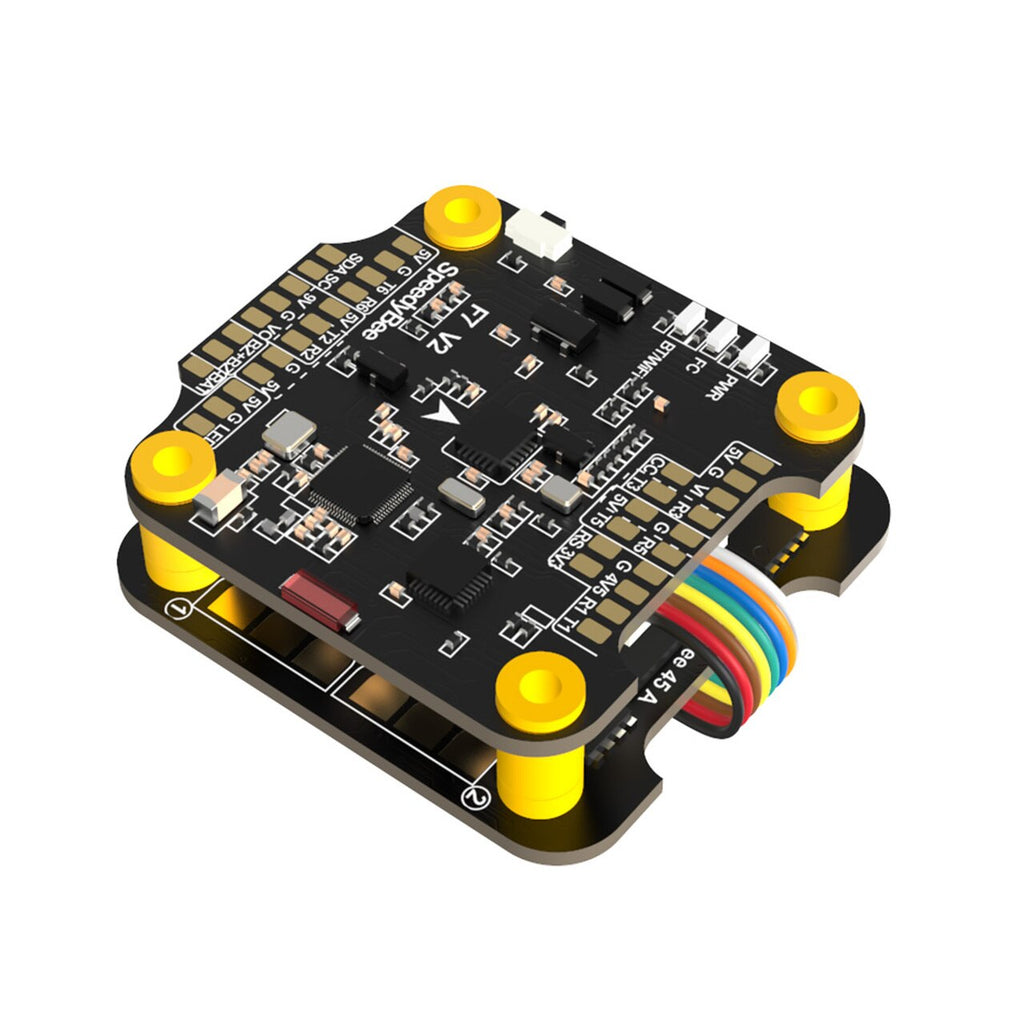

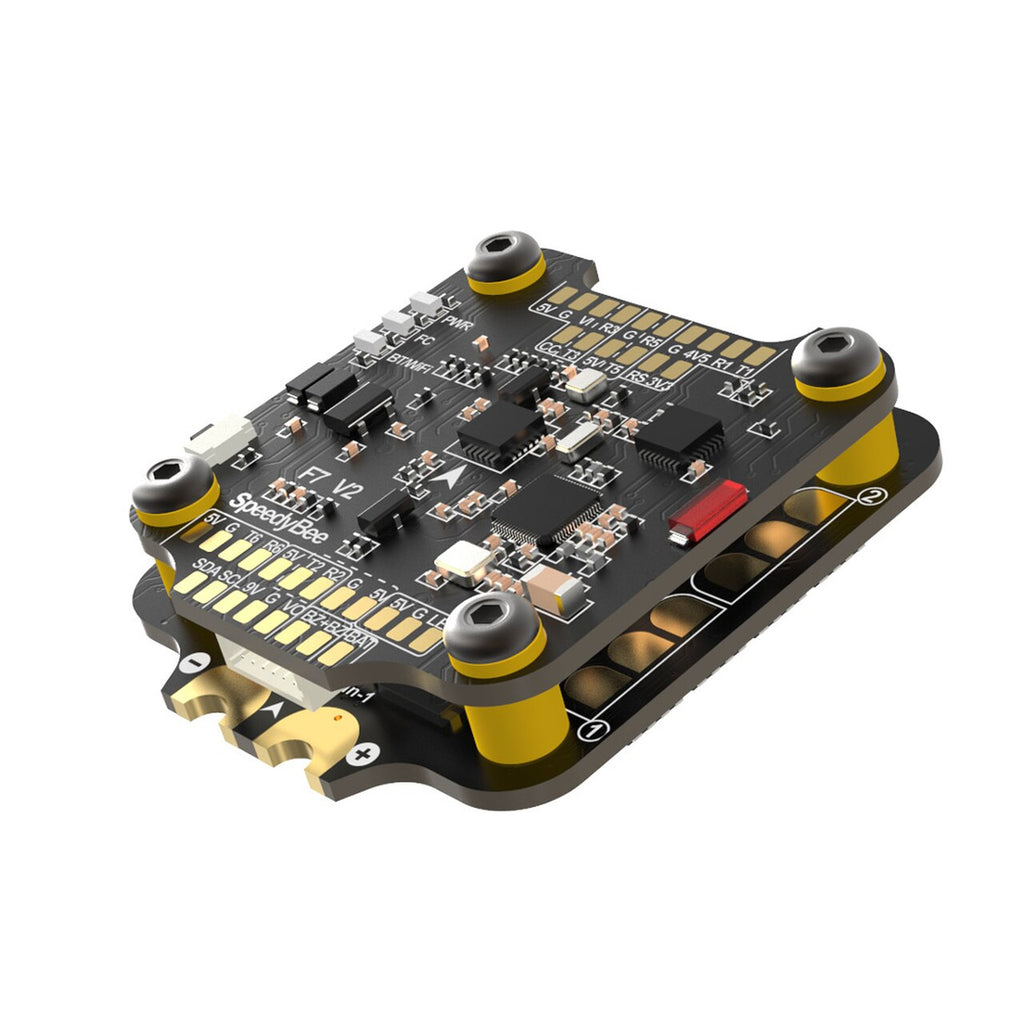

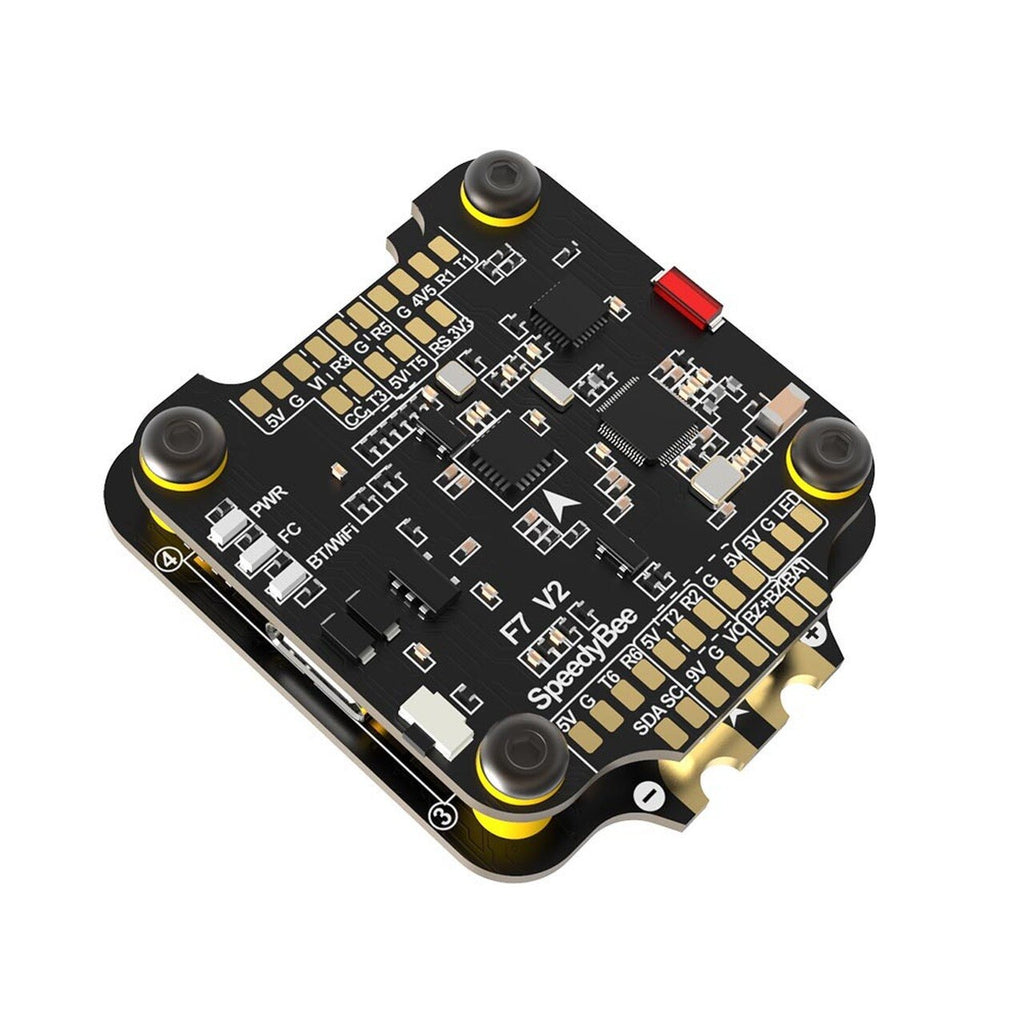

SpeedyBee F7 V2 45A Stack
The all-new F7 stack from SpeedyBee will completely change the way you interact with your quads. With full wireless support, you can update firmware, analyze blackbox data, set motor directions, even tune your PIDs - all from your phone! Forget your laptop and say goodbye to all that hassle - with the SpeedyBee configuration app, setting up your flight parameters isn't a chore anymore.

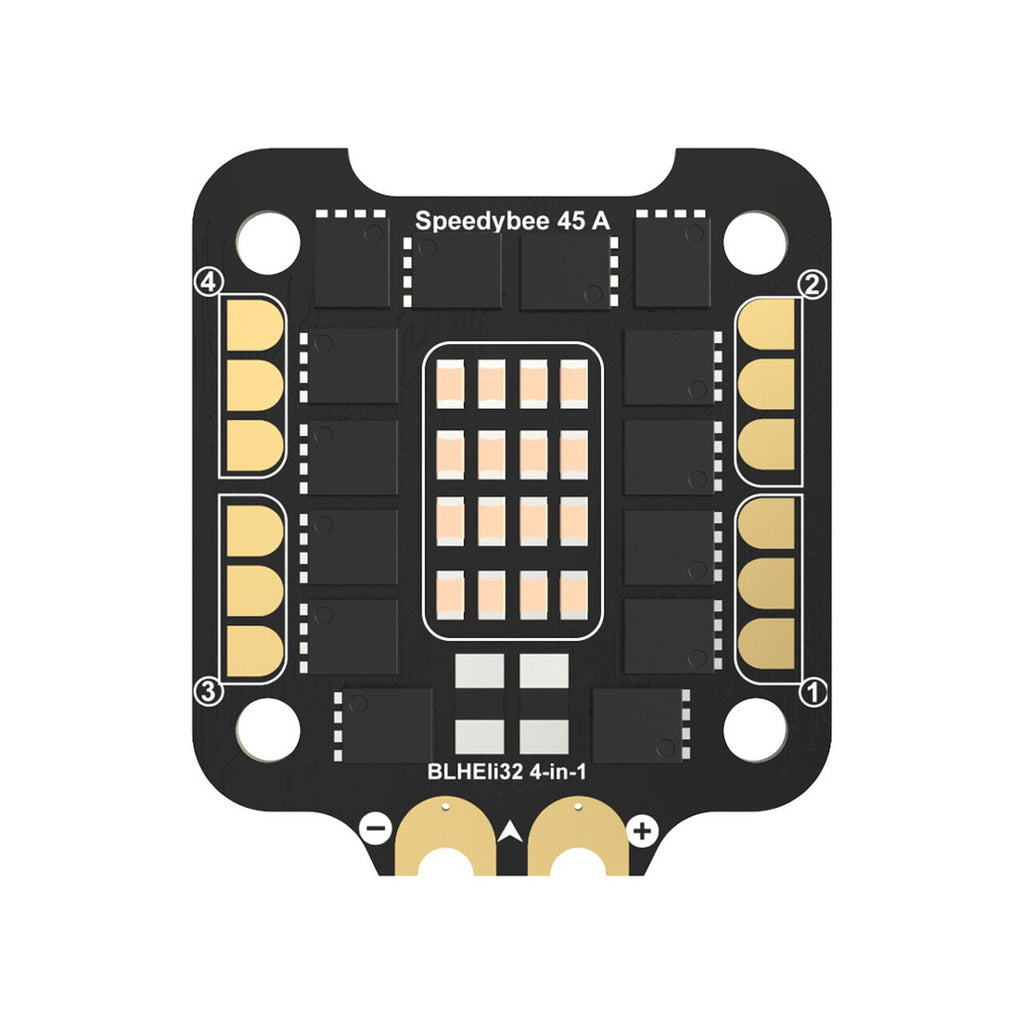

Of course, SpeedyBee backs up the tech with world-class performance! The F7 processor ensures you get lightning fast response time from the flight controller, while the 4-in-1 ESC delivers true 6S 45A power, on a board absolutely crammed with capacitors to filter out all noise from your throttle signal.

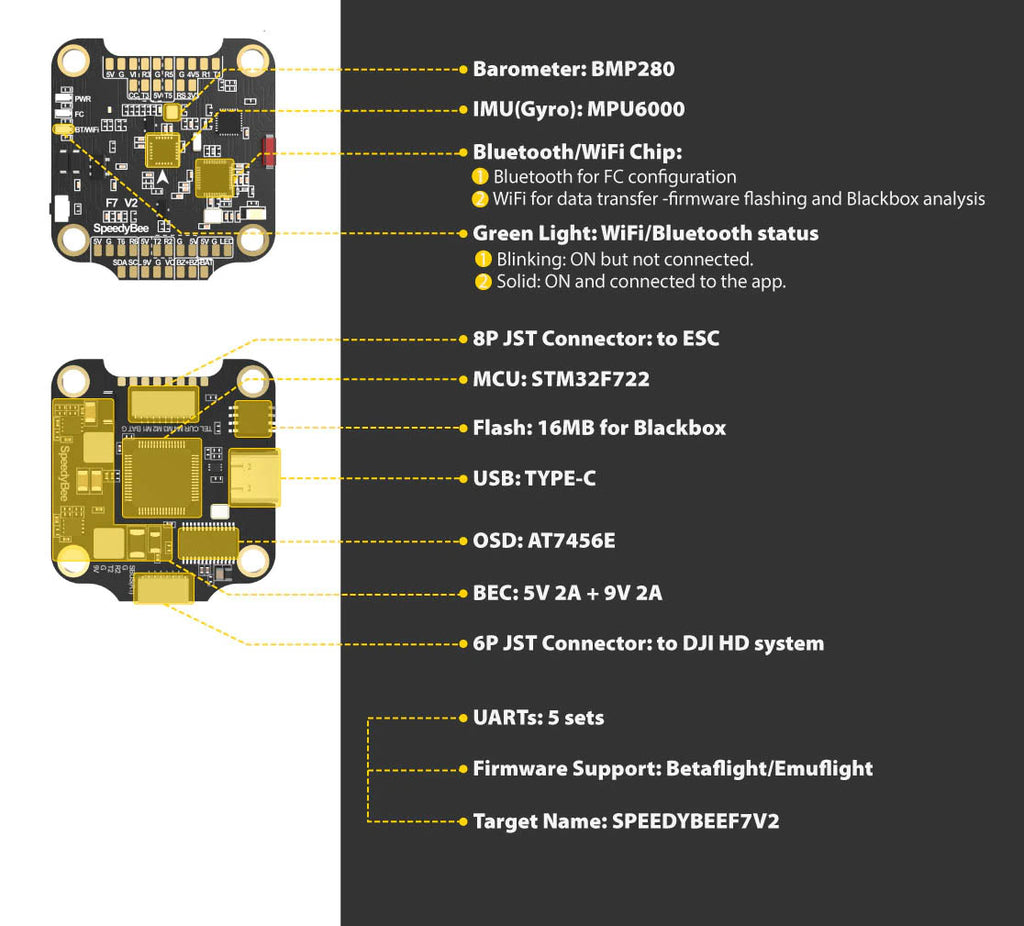

MCU | STM32F722 |
IMU | MPU6000 |
Barometer | BMP280 (I2C) |
OSD | BetaFlight OSD w/ AT7456E chip |
WiFi/BLE | BLE for FC configuration, WiFi for firmware updates and blackbox analysis |
DJI Support | Full DJI Air Unit connection |
Blackbox | 16MB onboard |
Input Voltage | 3-6S LiPo |
BEC | (7) 5V outputs,, (2) 9V outputs, (1) 4.5V output, (1) 3.3V output |
USB Connection | Type C |

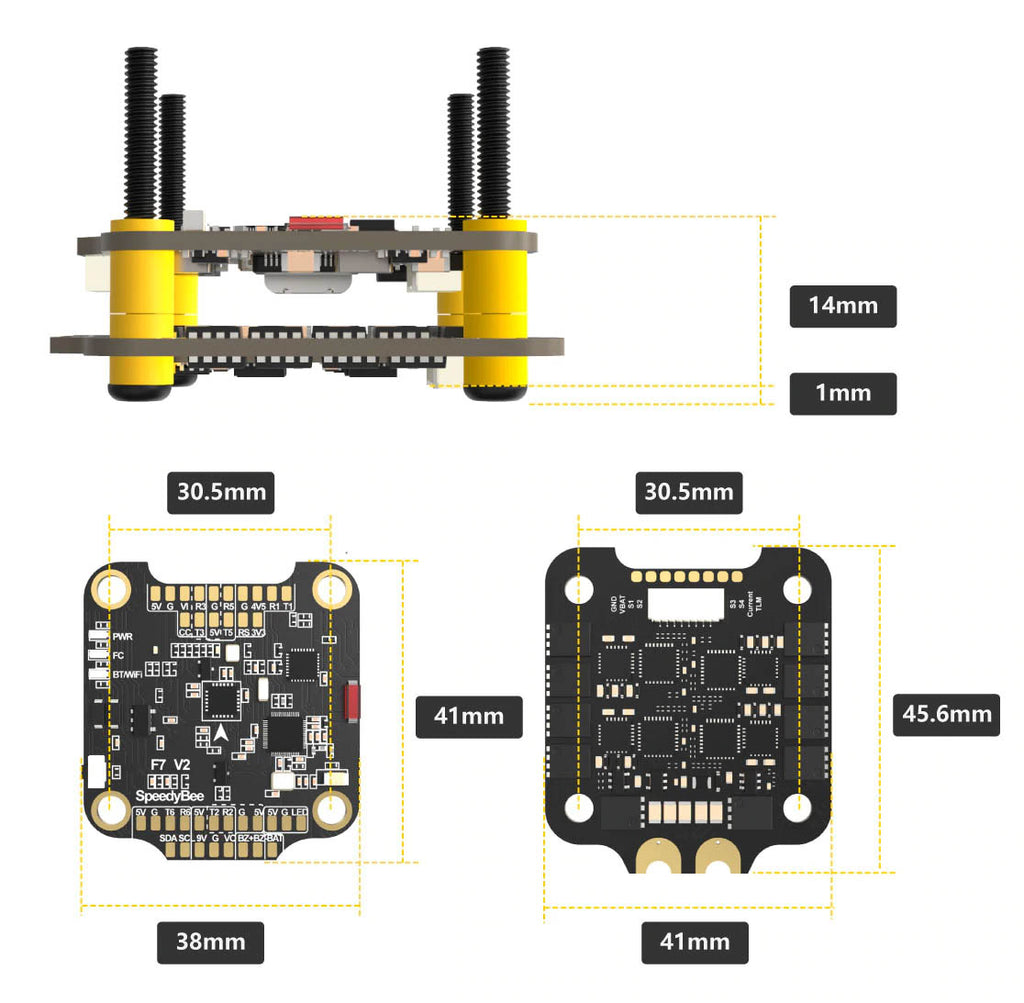

Dimensions | 41x38x6.9mm (30.5x30.5mm mounting, M4 hole size) |
Weight | 25g |
