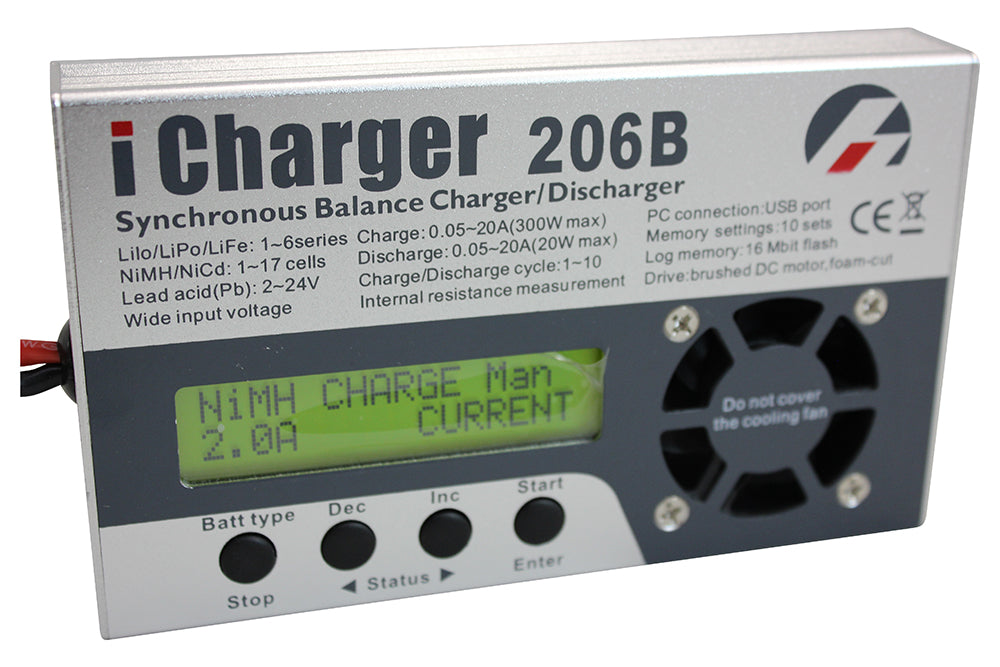

[Refurbished] iCharger 206B
RF-206B
*
These chargers have been refurbished by the manufacturer. They may show cosmetic wear such as scuffs or discoloration on the outer shell, but are completely functional. Original accessories and packaging are not included.
Compact, versatile and powerful, the iCharger line of battery chargers are among the most popular in the RC hobby.
The 206B charger is designed for charging 1S-6S packs at up to a 20 amp charge rate, while also giving you useful tools such as measuring the internal resistance of your batteries, or safely and easily discharging packs for storage.
Compact, versatile and powerful, the iCharger line of battery chargers are among the most popular in the RC hobby.
The 206B charger is designed for charging 1S-6S packs at up to a 20 amp charge rate, while also giving you useful tools such as measuring the internal resistance of your batteries, or safely and easily discharging packs for storage.
Read More
| Input Voltage | 10-28V DC |
| Dimensions | 134x83x25mm |
| Balance Accuracy | <10mV |
| Memories | 10 |
| Current Drain (Balancing) | 350mA |
| Discharge Current Range | 0.05-20.0A |
| Input Current | 21A |
| Temperature Control (Intel.) | Yes |
| LiPo/LiIo/LiFe | 1-6 series (up to 8S LiFe in non-balanced mode) |
| Charge Power (Max) | 300W (at >18V) |
| Discharge (Max) | 20W |
| External Discharge (Max) | 500W at 25V/20A |
| Regenerative Discharge (Max) | 300W |
| Cell Count (NiCd/NiMh) | 1-17 series |
| Pb Battery Cell Count | 1-12 series (2-24V) |
| PC Connectivity | USB port |
| Warranty | 30 days |
| Weight | 315g |
| Charge Current Range | 0.05-20.0A |
Parallel Charging 6 LiPo Batteries Using iCharger 206B:
Parallel Charge Board Demonstration:
iCharger 206B Manual
