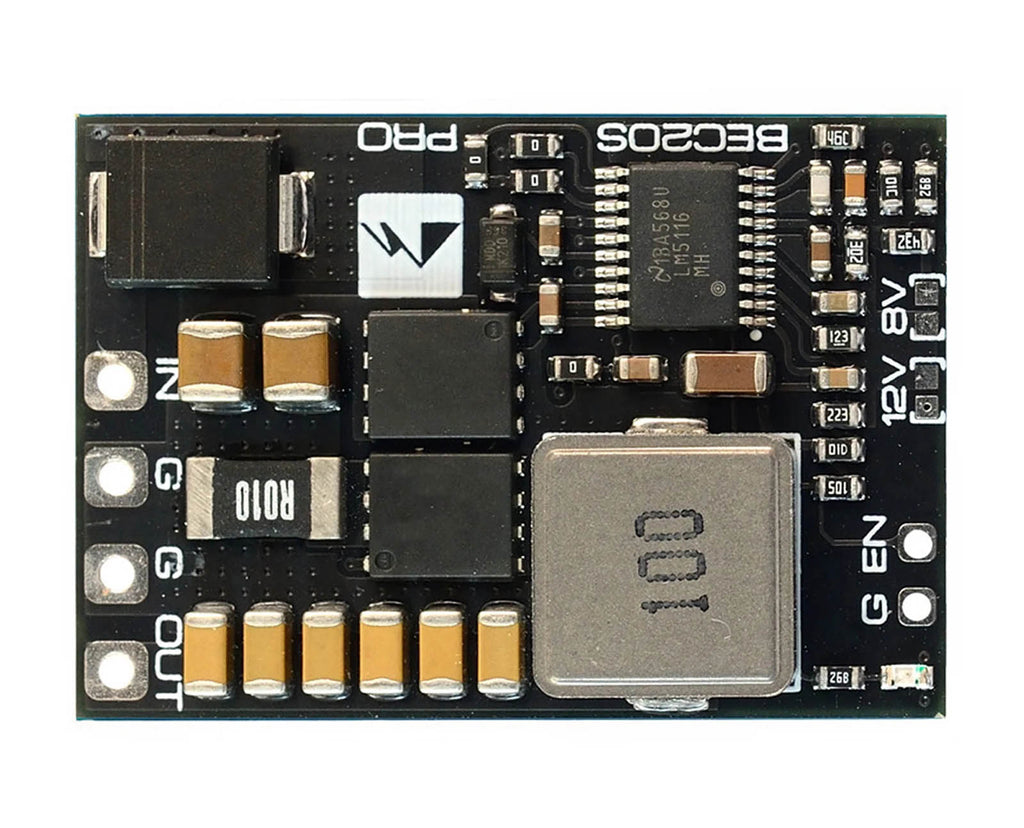

Matek BEC20S-PRO
AC-MBEC20
This BEC is perfect for high-voltage applications!
Ideal for very large aircraft, the new BEC20S-PRO from Matek is ready for high input voltage of up to 85V, and offers a selectable output voltage of 5.2, 8, or 12V, supporting output current of up to 5A continuous with a 9A burst.
This voltage regulator also features a synchronous switching step-down (buck) regulator, thermal Shutdown, output Short-circuit tolerance (2 seconds), overcurrent protection & self-recovery and much more!
Read More

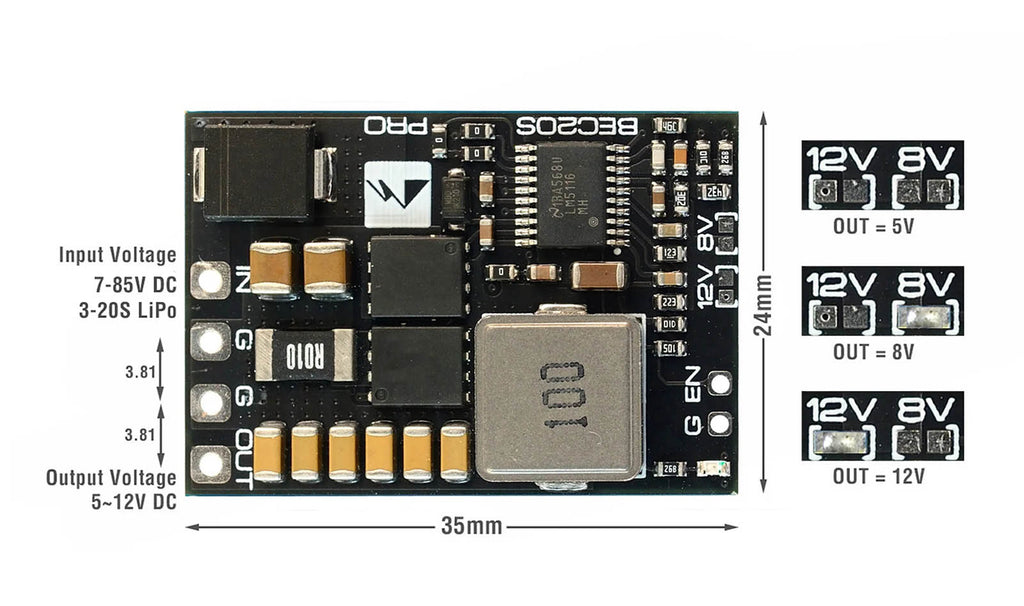

| Input Voltage | 7-85V DC |
| Output Voltage | Selectable 5.2V, 8V, or 12V |
| Output Current | 5A max continuous, 9A peak |
| Dimensions | 35x24x5.5mm |
| Weight | 5g |
