BetaFPV F4 Brushed Flight Controller

AC-BFFC
In stock
$42.99
High performance and feature-rich flight controller for brushed Whoops

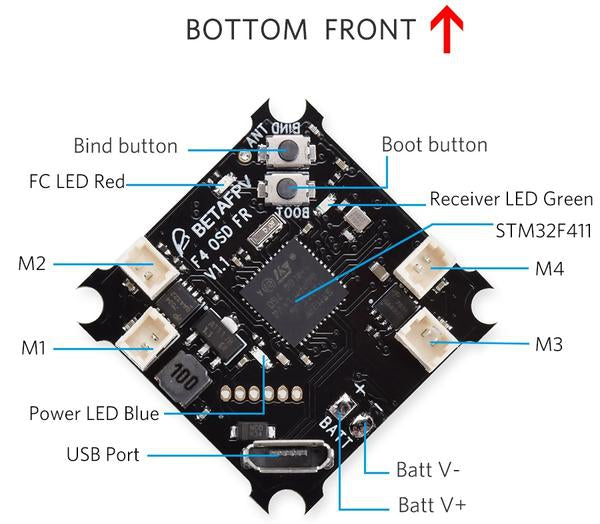

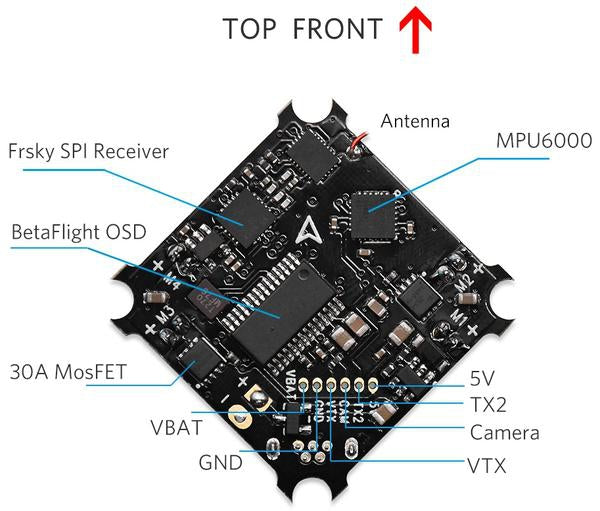

BetaFPV's F4 brushed FC board brings a new era in FPV whoop technology. STM32F411 100MHz high performance MCU, 30A lower resistance MOSFETs, SPI Frsky Rx, built-in Betaflight OSD and reverse polarity protection. All backed by the same reliability and warranty of all BetaFPV FC boards.

Betaflight OSD (on screen display) is integrated in BetaFPV F4 brushed flight controllers that shows important flight data on your FPV feed, such as battery voltage, current draw and much more. You can even use it as a menu to change your quad’s PID, rates, filters and other settings.

The built in Frsky receiver is compatible with nearly all FrSky radios and compatible FrSky modules. Note that this is a SPI connection receiver. In Betaflight Configuration, it should be set as FRSKY_D receiver (aka Frsky D8 mode) or FRSKY_X receiver (aka Frsky D16 mode) in SPI RX mode.
Read More
Read Less
Dimensions 26x26mm

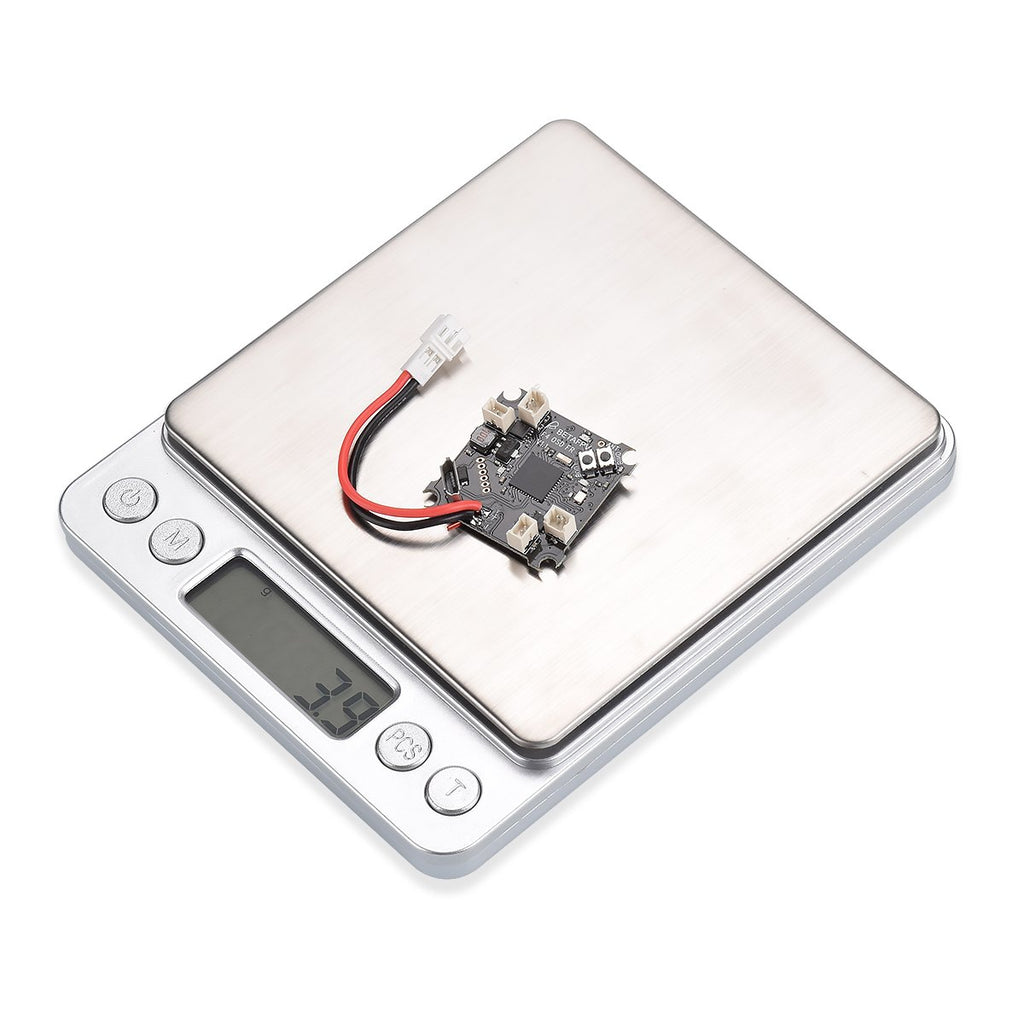

Weight 3.7g
3-Axis Gyroscope and Accelerometer MPU6000
MCU STM32F411CEU6
