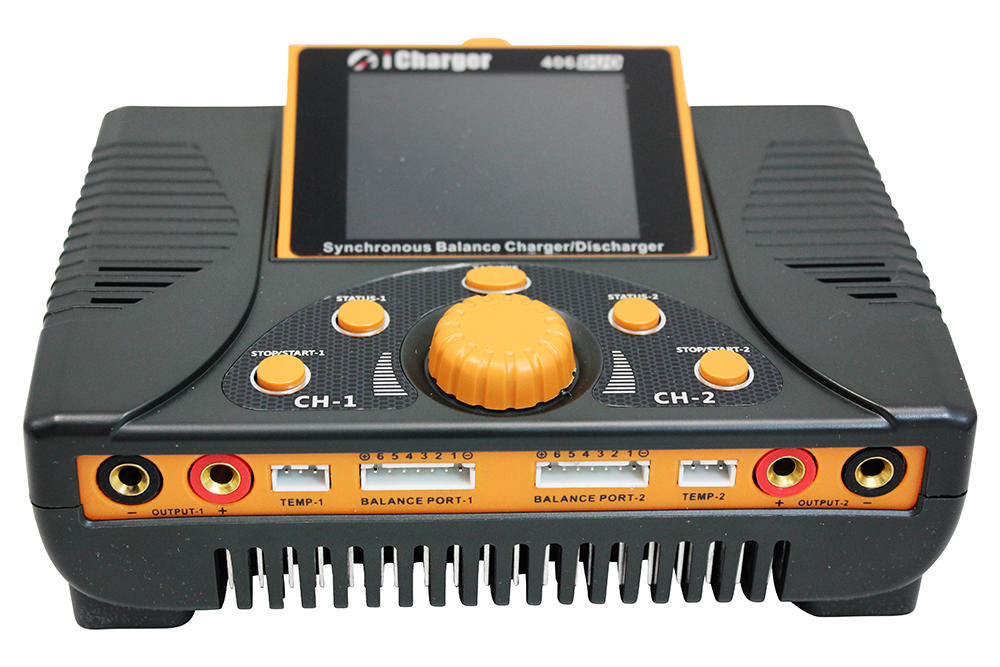

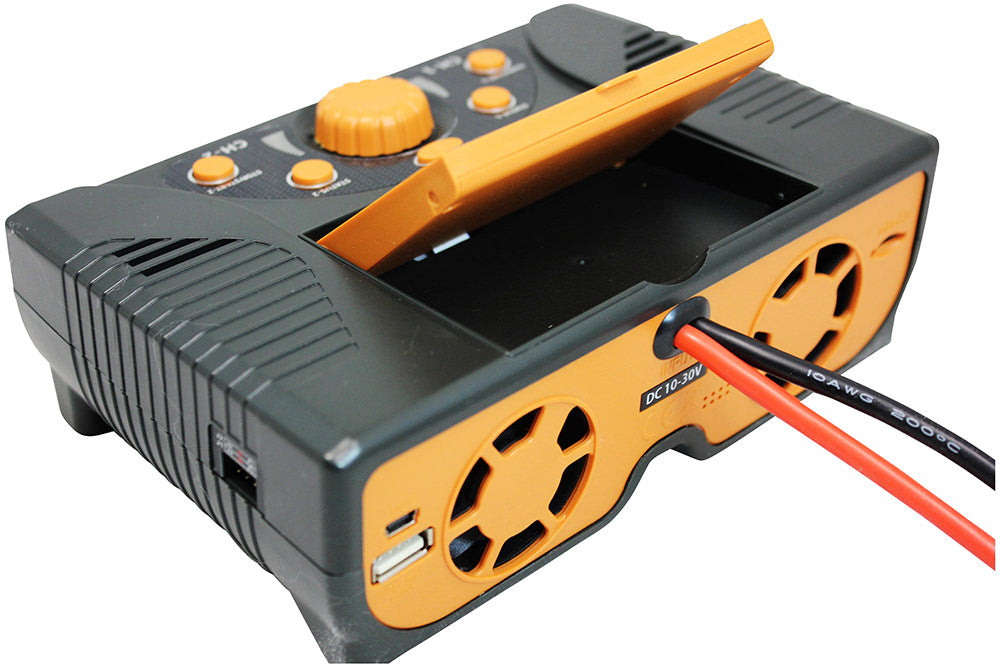

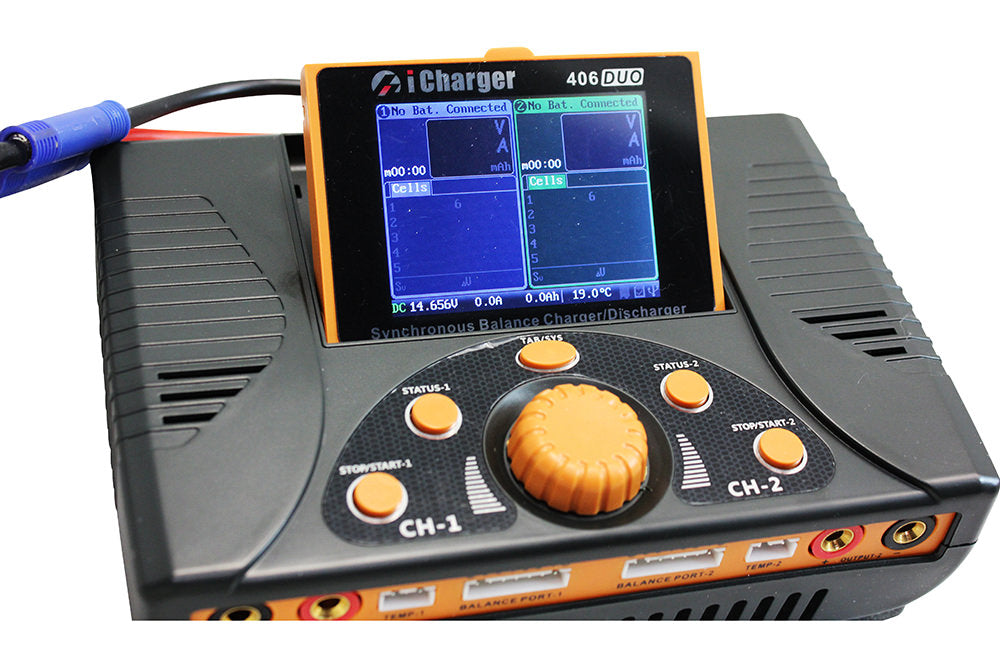

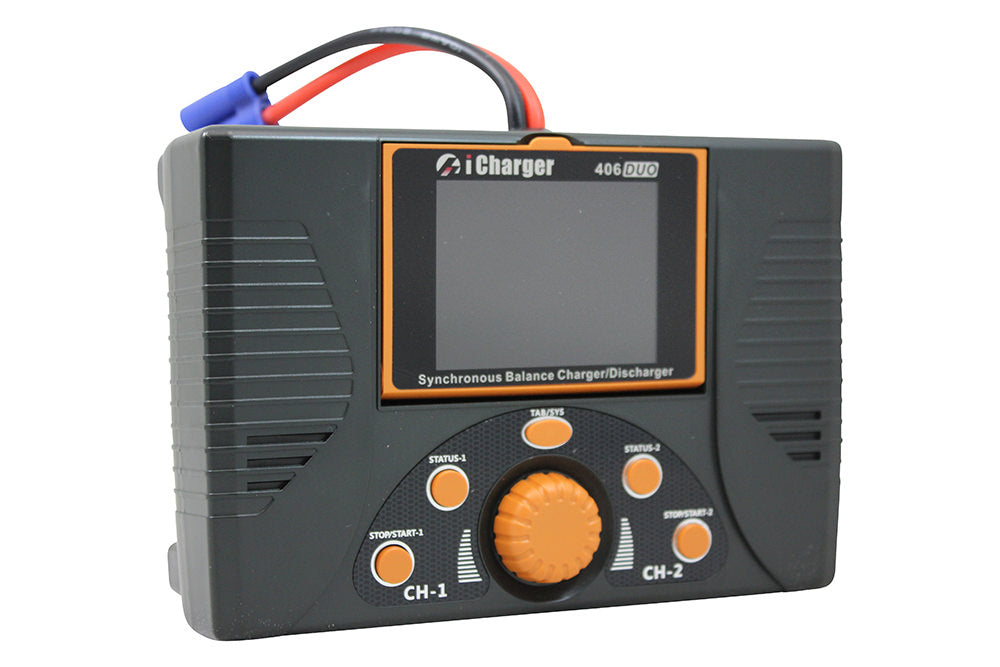

iCharger 406Duo
406DUO
High-power charger providing 40 amps on each of two channels - or combine the two outputs in parallel for up to 70 amp charge rates! Includes a JST-XH balance board for each channel!
This item is no longer available. Click here for a recommended alternative.
Need flexibility in your charging? Nothing beats the convenience of a dual-port charger. Two independent charging channels in one compact unit lets you simultaneously work with batteries of different cell count , charging at up to 40A simultaneously - or if you want to go all out, combine the two channels and charge at up to 70A!

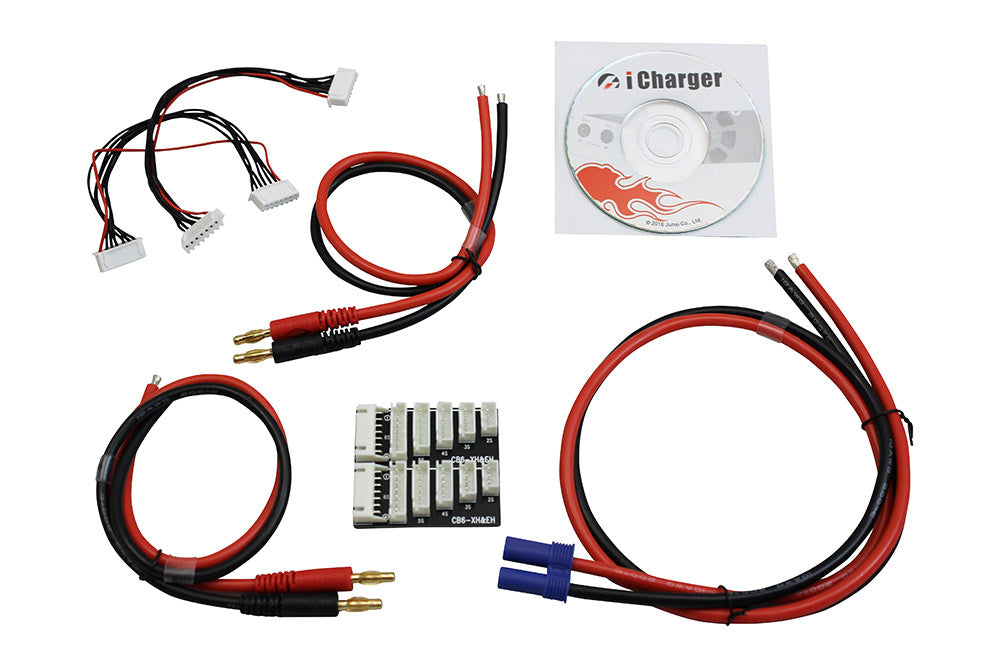

With two JST-XH balance boards included - one for each channel - you'll be ready to go right away.
Read More
| Input Voltage | 10 - 30V DC |
| Dimensions | 171x118x59mm |
| Balance Accuracy | 10mV |
| Memories | 64 user presets |
| Current Drain (Balancing) | 1.2A per channel (up to 2.4A in synchronous mode) |
| Discharge Current Range | 0.05-40A per channel (up to 70A in synchronous mode) |
| Input Current | 60A (47A single channel maximum) |
| Temperature Control (Intel.) | Yes |
| LiPo/LiIo/LiFe | 1 - 6 series |
| Charge Power (Max) | 1400W at >26V (1000W max. per channel) |
| Discharge (Max) | 80W per channel (up to 140W in synchronous mode) |
| External Discharge (Max) | 1000W per channel (up to 2000W in synchronous mode) |
| Regenerative Discharge (Max) | 1000W per channel (up to 1400W in synchronous mode) |
| Cell Count (NiCd/NiMh) | 1 - 25 series |
| Pb Battery Cell Count | 1 - 18 series |
| PC Connectivity | Mini USB 2.0 |
| USB Charging Port | 5V , 1A (1.2A current limiting protection) |
| Warranty | 1 year |
| Weight | 910g |
| Charge Current Range | 0.05-40A per channel (up to 70A in synchronous mode) |
