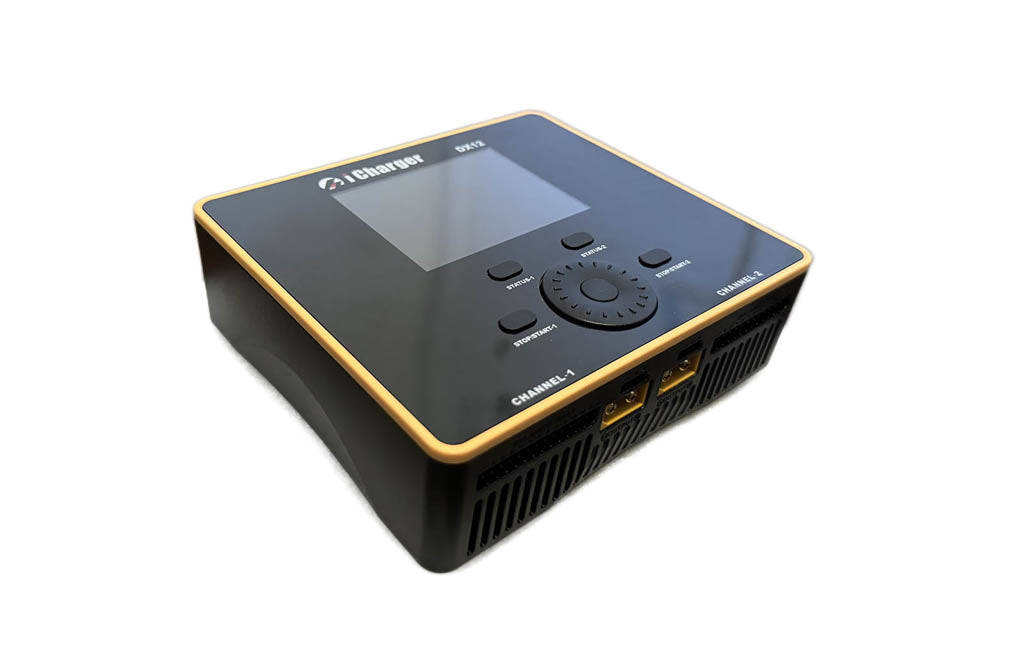

iCharger DX12
DX12
This dual channel charger might be small but it can handle packs up to 12S and output up to 1700W
We knew it was coming and it's finally here: the all-new iCharger DX12, the compact, dual channel version of the popular X12.
With a maximum potential output of 1700W, the DX12's capabilities are far beyond what you might expect from its size. Charge at up to 30A per channel (50A total) on LiPo batteries up to 12S. With a balance current of a full 2A, charges will finish faster than ever. The full color IPS display provides a wealth of information at a glance, using the operating system perfected on the larger Duo iChargers.
The DX12 can charge at up to 30A, and it can also discharge at up to 30A! While similar size chargers limit their discharge capabilities, the DX12 offers iCharger's trademark support for regenerative discharge, allowing the charger to provide a full 1700W of discharge capability when powered from a suitable battery bank.
Despite its small size, this is still a full featured iCharger, with multi-chemistry support and all the depth of settings you've come to expect, including an improved software interface for recording battery data and upgrading firmware.
With a maximum potential output of 1700W, the DX12's capabilities are far beyond what you might expect from its size. Charge at up to 30A per channel (50A total) on LiPo batteries up to 12S. With a balance current of a full 2A, charges will finish faster than ever. The full color IPS display provides a wealth of information at a glance, using the operating system perfected on the larger Duo iChargers.
The DX12 can charge at up to 30A, and it can also discharge at up to 30A! While similar size chargers limit their discharge capabilities, the DX12 offers iCharger's trademark support for regenerative discharge, allowing the charger to provide a full 1700W of discharge capability when powered from a suitable battery bank.
Despite its small size, this is still a full featured iCharger, with multi-chemistry support and all the depth of settings you've come to expect, including an improved software interface for recording battery data and upgrading firmware.
Read More
| Charge Power (Max) | 1700W (max 1200W per channel) |
| Charge Current Range | 0.05-30A |
| Current Drain (Balancing) | 2A |
| Balance Accuracy | 10mV |
| Internal Discharge (Max) | 80W (50W max per channel) |
| External Discharge (Max) | 3000W (max 1500W per channel) |
| Regenerative Discharge (Max) | 1700W (max 1200W per channel) |
| Discharge Current Range | 0.05-30A |
| LiPo/LiIo/LiFe | 1-12S per channel |
| NiCd/NiMh Cell Count | 1-20S per channel |
| Pb Battery Cell Count | 1-12S per channel |
| Temperature Control (Intel.) | Yes |
| PC Connectivity | USB-C |
| USB Charge | Type-C PD 5V/3A, 9V/2A, 12V/1.5A |
| Warranty | 1 year |
| Input Voltage | 11-53V DC |
| Input Current Limit | 65A |
| Dimensions | 112x129x40mm |
| Weight | 500g |
