iCharger DX6
Click to zoom in

iCharger DX6

DX6
Dual-channel version of the X6 charger offers incredible power density!
$209.99

We knew it was coming and it's finally here: the all-new iCharger DX6, the compact, dual channel version of the popular X6.

With a maximum potential output of 1500W, the DX6 is ready to match up with any high-power charger, at a fraction of the size and cost. Charge at up to 32A per channel (50A total) on LiPo batteries up to 8S. With a balance current of a full 2A, charges will finish faster than ever. The full color IPS display provides a wealth of information at a glance, using the operating system perfected on the larger Duo iChargers.

The DX6 can charge at up to 32A, and it can also discharge at up to 32A! While similar size chargers limit their discharge capabilities, the DX6 offers iCharger's trademark support for regenerative discharge, allowing the charger to provide a full 1500W of discharge capability when powered from a suitable battery bank.

Despite its small size and low price, this is still a full featured iCharger, with multi-chemistry support and all the depth of settings you've come to expect, including an improved software interface for recording battery data and upgrading firmware.

Read More
Read Less
Charge Power (Max) 1500W (max 900W per channel)
Charge Current Range 0.05-32A
Current Drain (Balancing) 2A
Balance Accuracy 10mV
Internal Discharge (Max) 60W (40W max per channel)
External Discharge (Max) 1600W (max 900W per channel)
Regenerative Discharge (Max) 1500W (max 900W per channel)
Discharge Current Range 0.05-32A
LiPo/LiIo/LiFe 1-6S per channel
NiCd/NiMh Cell Count 1-15S per channel
Pb Battery Cell Count 1-12S per channel
Temperature Control (Intel.) Yes
PC Connectivity USB-C
USB Charge Type-C PD 5V/3A, 9V/2A, 12V/1.5A
Warranty 1 year
Input Voltage 9-34V DC
Input Current Limit 65A
Dimensions 112x92x40mm
Weight 360g

Customer Reviews

Based on 14 reviews
86%
(12)
14%
(2)
0%
(0)
0%
(0)
0%
(0)
L
Lukas James-Dean Ackerman
Bees Knees.

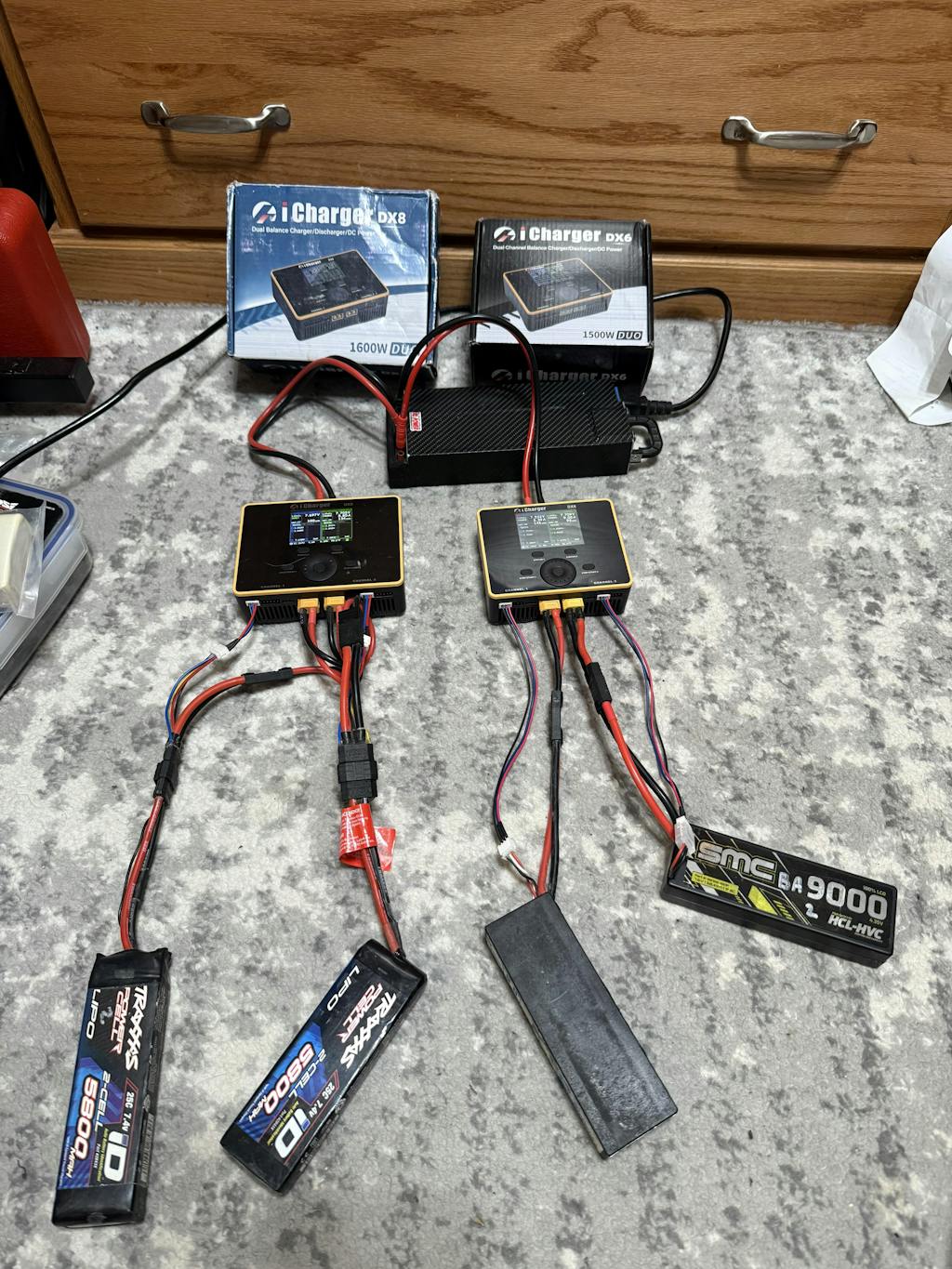

I’ve tried about just every modern charger out there. I have ended up selling my P30 and others and am left with two DX6’s for my home setup. And a case for the field.

Full of features you don’t get everywhere, like balance only, cycle (super handy!!!) and true IR tests.

Thanks ProgressiveRC. You guys kick bu** too!

E
Eric Murray

Works as expected

E
Elaine Bozeat
DX6

Very satisfied with product and delivery time

W
William Catenacci
All you need in a charger

So far the DX6 has been everything my 406 duo is but way smaller and easier to transport. Interface is simple, dial works great and it's all you'll need.

C
Charles Bower
Mystery plug

I wasn’t able to find the right connector for the power in port. I tried several brands of plugs until I tried a single connector, I then realized it was the male part on the charger was collapsed so it didn’t make a good connection. When I spread the four parts of the connector it made good contact and problem fixed.
👍
