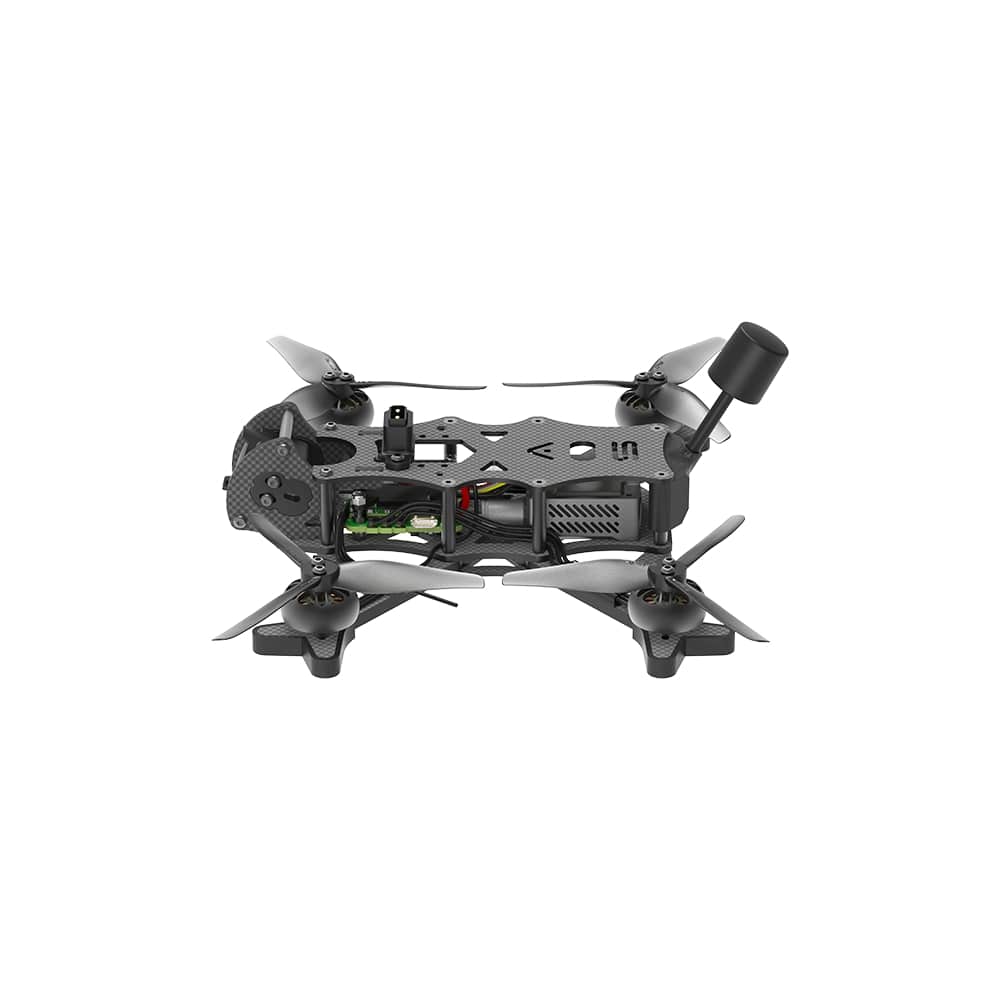

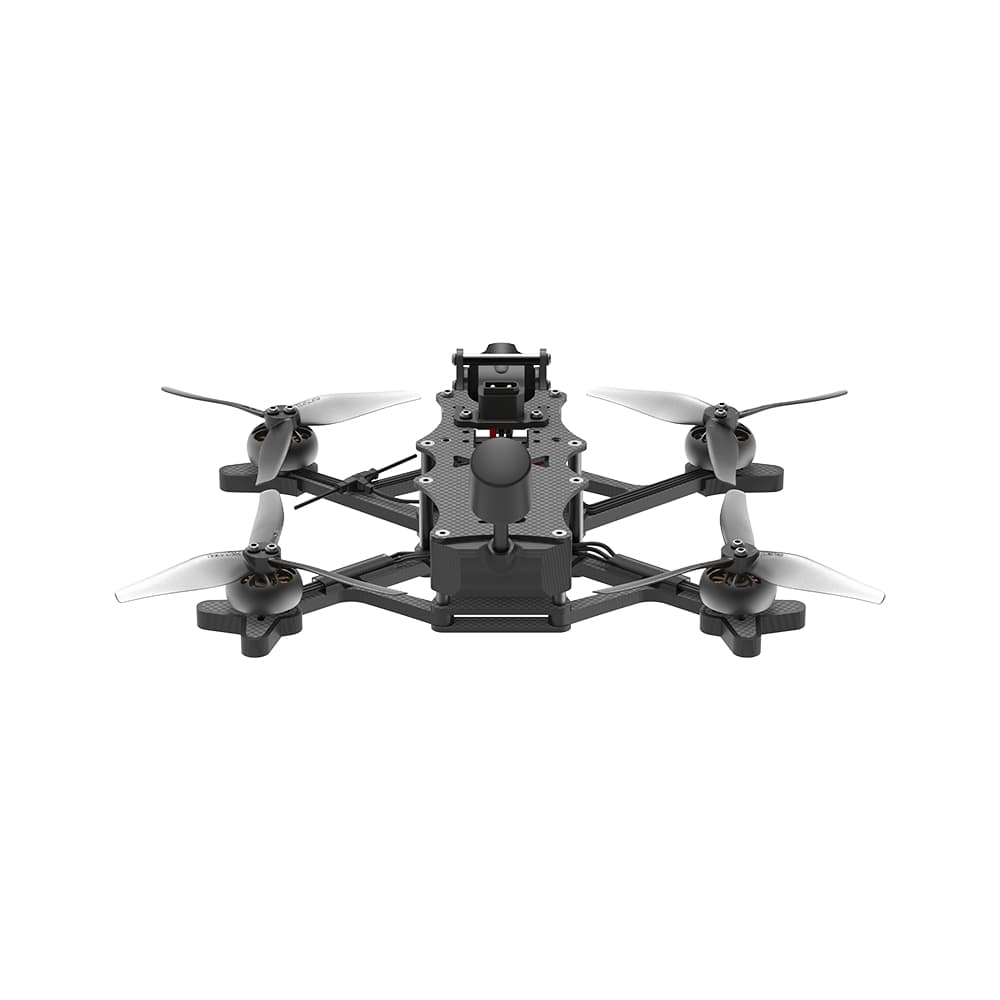

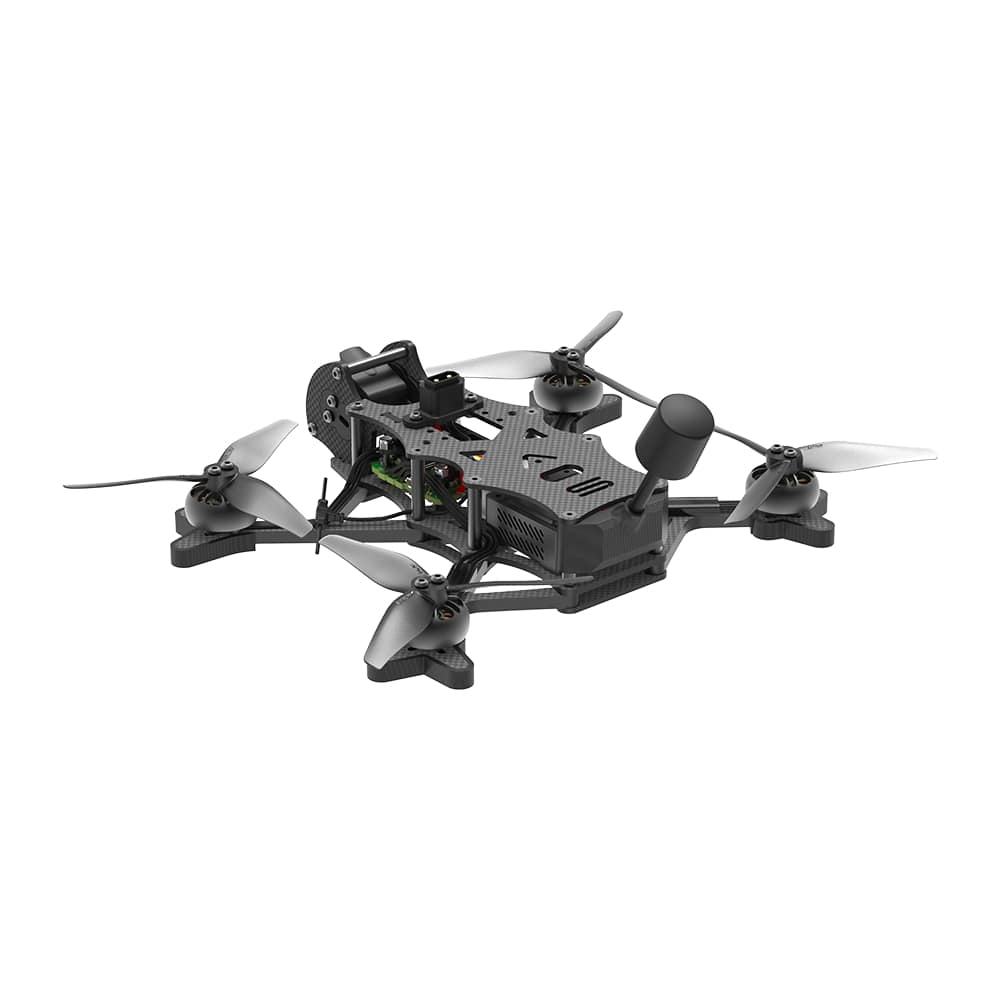

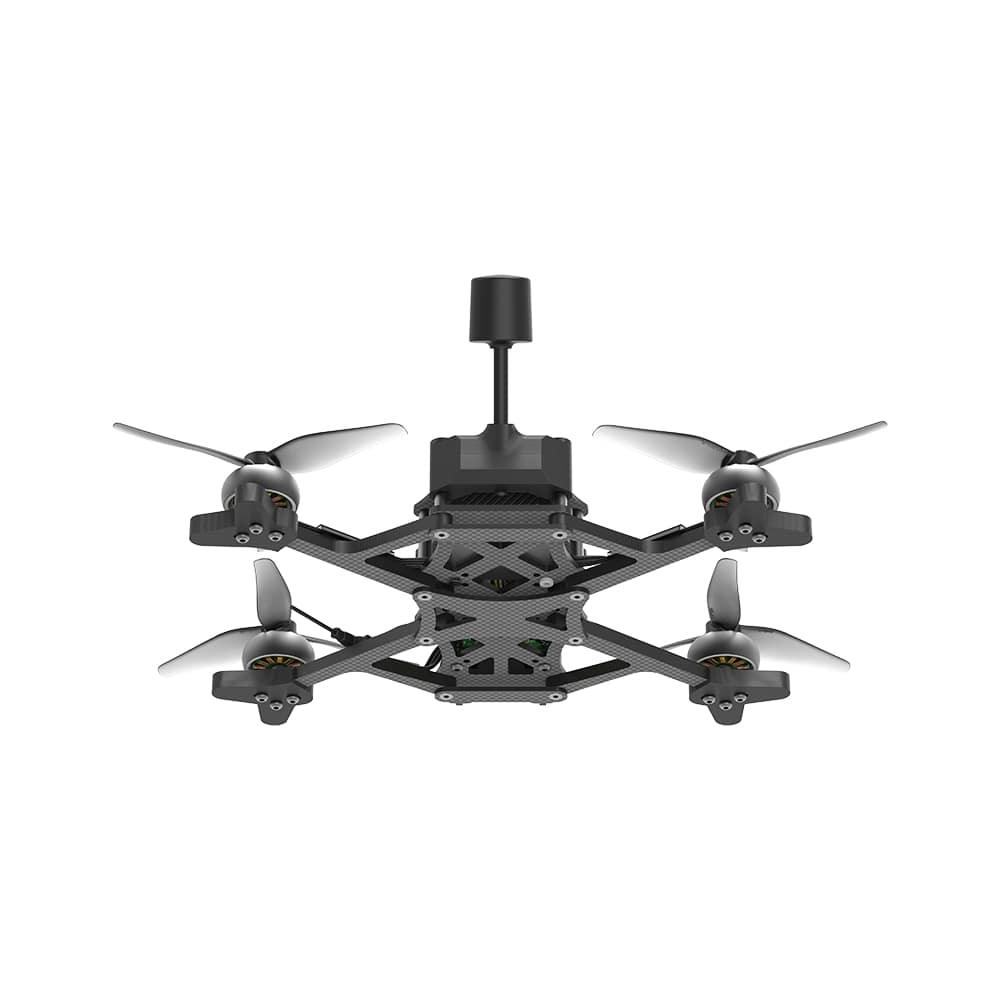

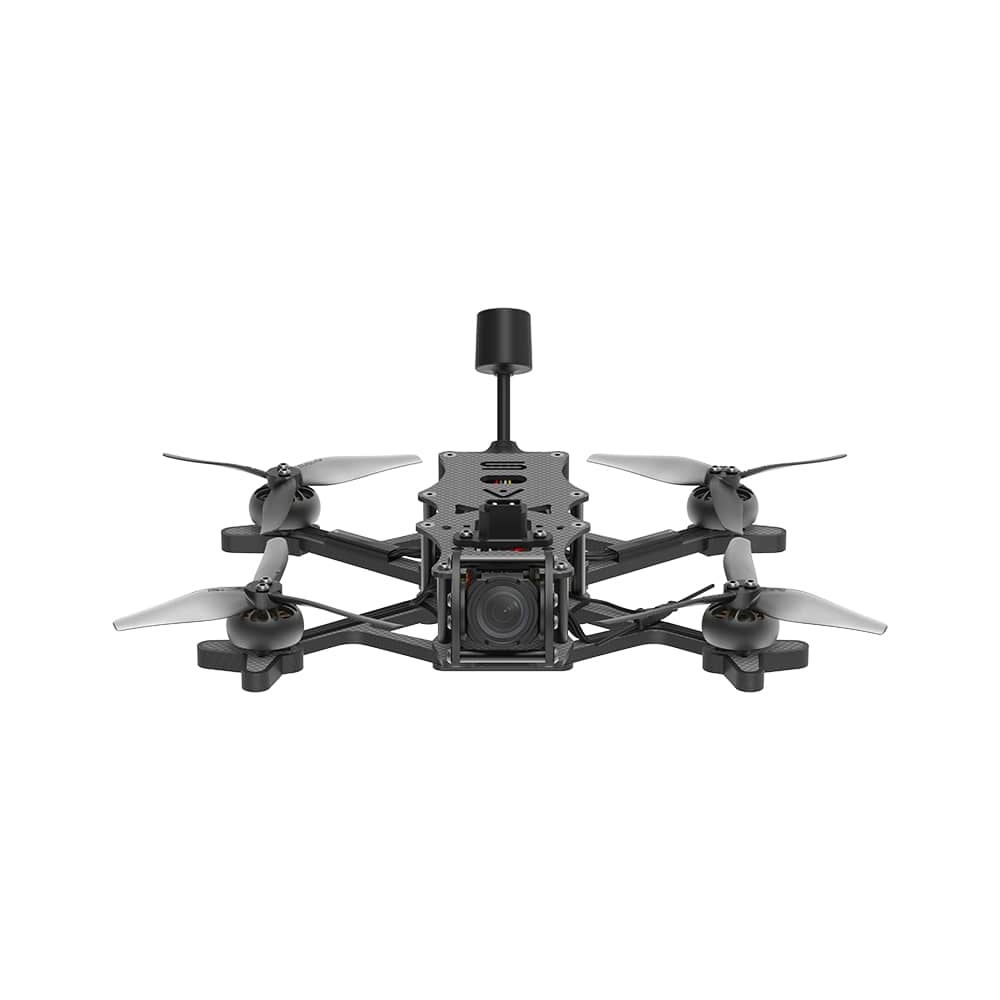

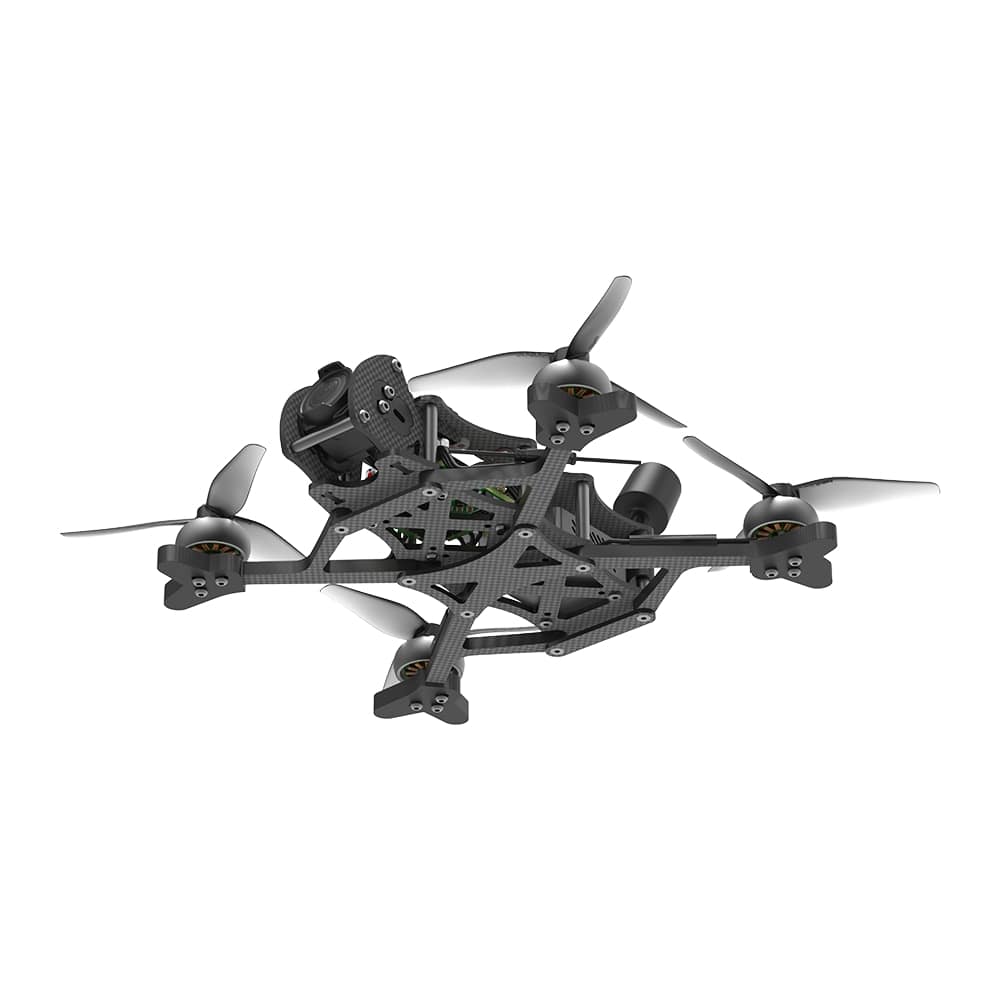

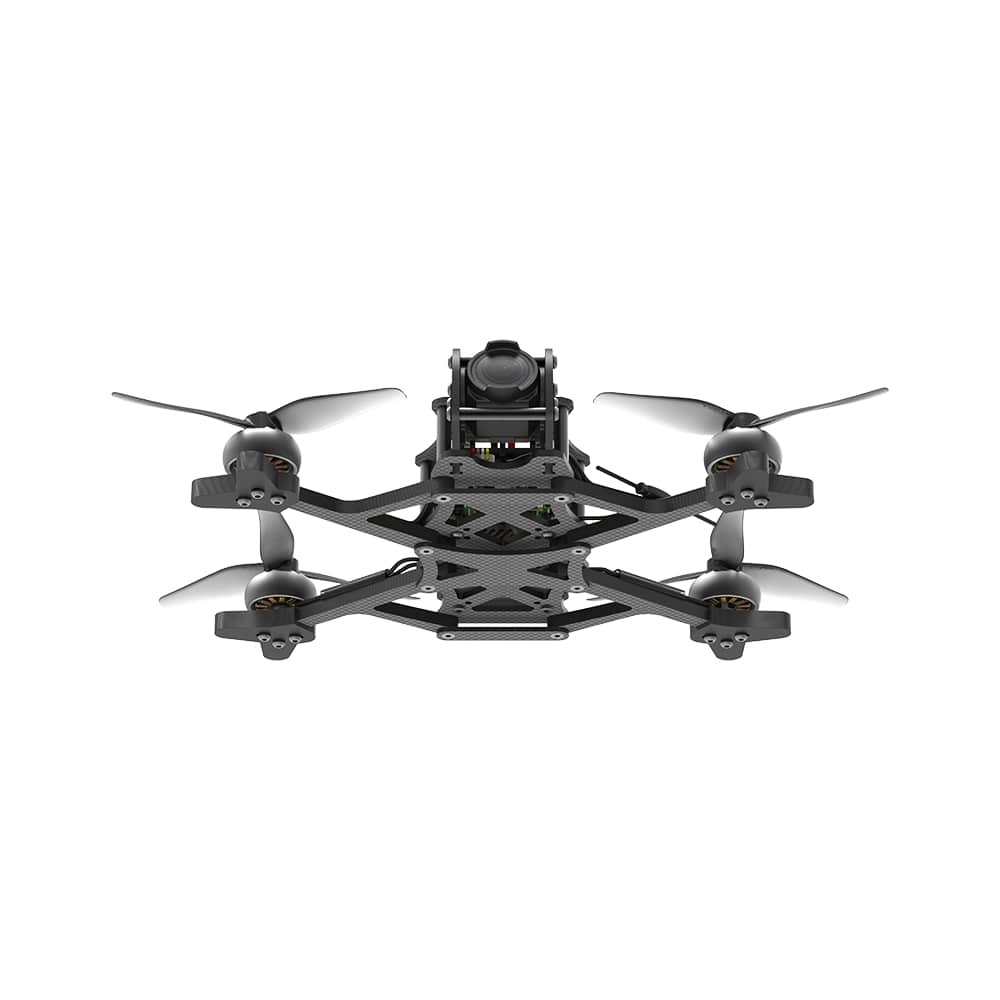

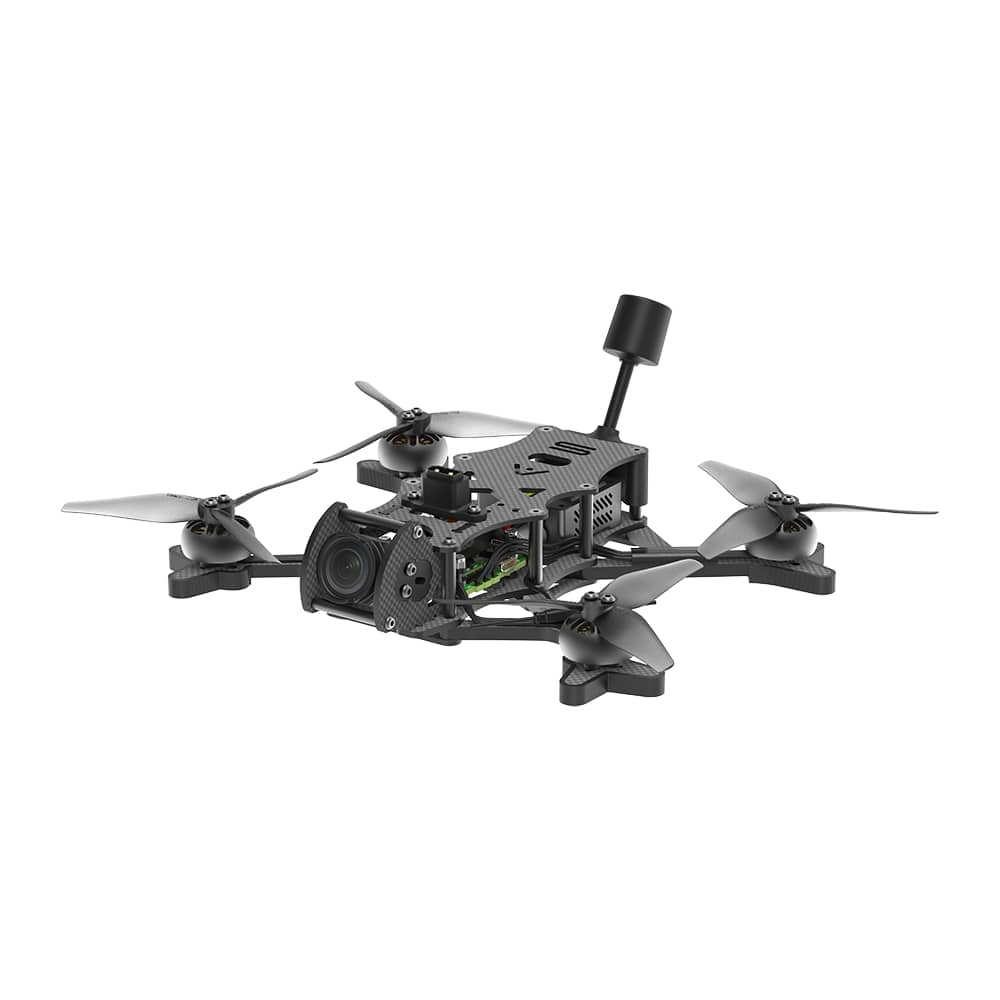

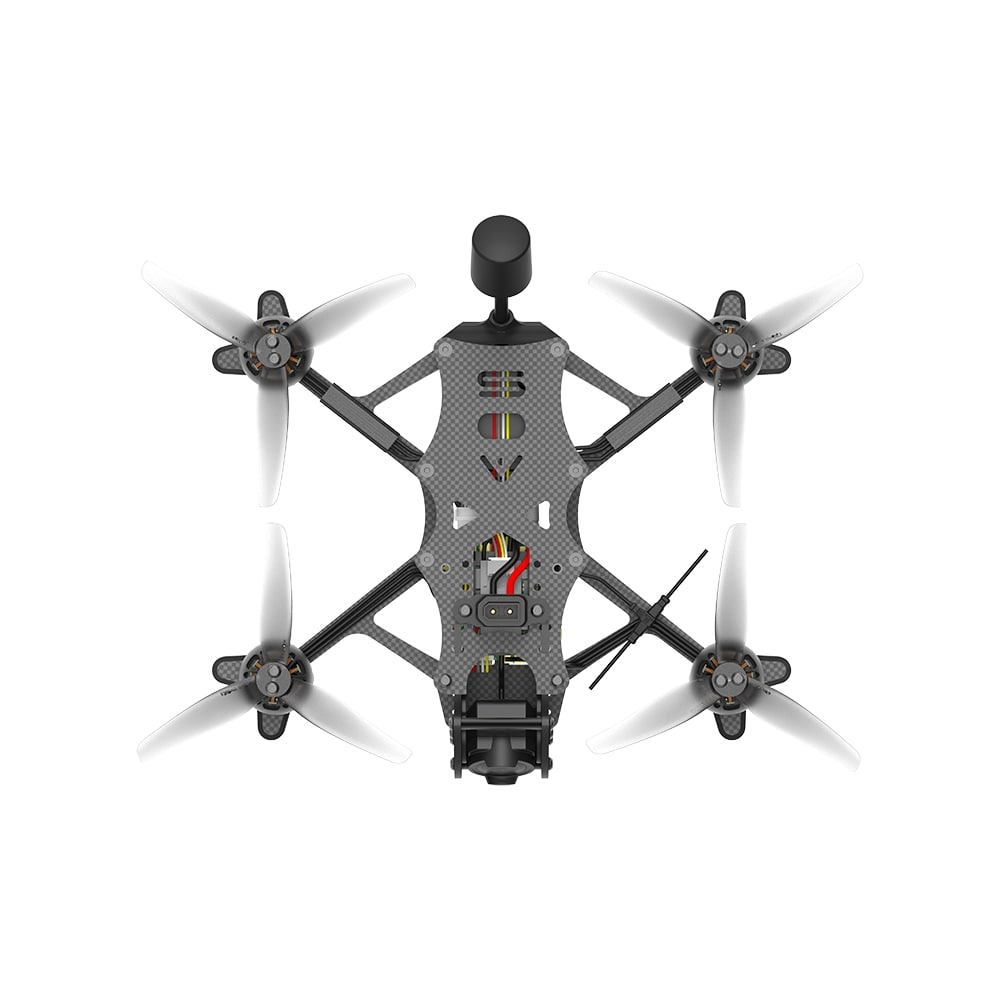

iFlight AOS 3.5 EVO V1.2 HD BNF
Built to go toe to toe with 5" Freestyle quads whilst weighing under 250g. The AOS 3.5 has been updated to be compatible with the new DJI O3 Air Unit as well as existing 20x20mm and 25.5x25.5mm electronics. The camera cage and arms have been reinforced to improve durability. As with all AOS frames exceptional vibration and resonance performance is guaranteed, eliminating IMU resonance issues with O3 image stabilization.
The AOS 3.5" was born from an analysis of quadcopter weight against prop size. The result was the identification of disc loading as a key parameter that could be compared between quads of different sizes and was a strong predictor of flight performance for freestyle flying.
By looking at the flight performance of a large number of quads it was possible to identify the ideal disc loading for a freestyle drone and thereby calculate the ideal prop size for an FPV freestyle drone of a given weight.
When that analysis is performed for 250g the ideal prop size turns out to be very close to 3.5" and several good 3.5" props are available.
Frame Dimensions | 162mm motor-to-motor |
Arm Thickness | 4mm |
Fuselage Thickness | 2mm Bottom Plate, 1.5mm Upper/Top Plates |
FC | Blitz F7 AIO |
Motors | XING 1504 3100kV |
Props | HQ 3525 Tri-Blade |
Takeoff Weight | ~280g with 4S 850mAh |
