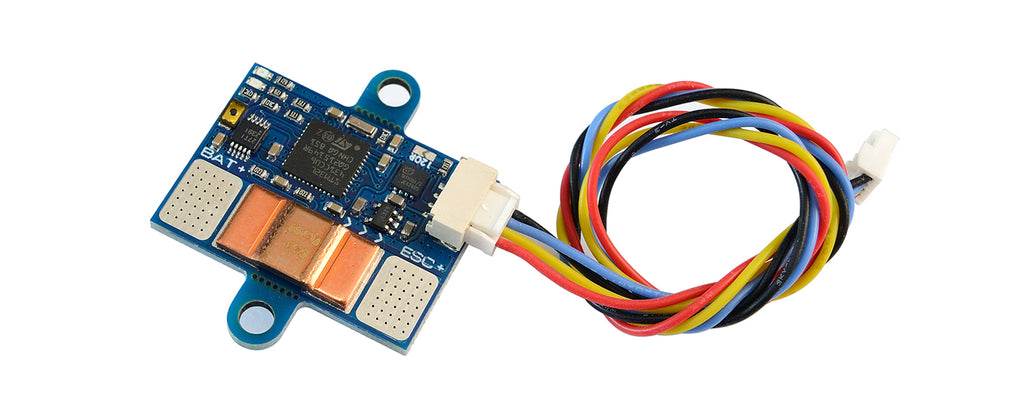

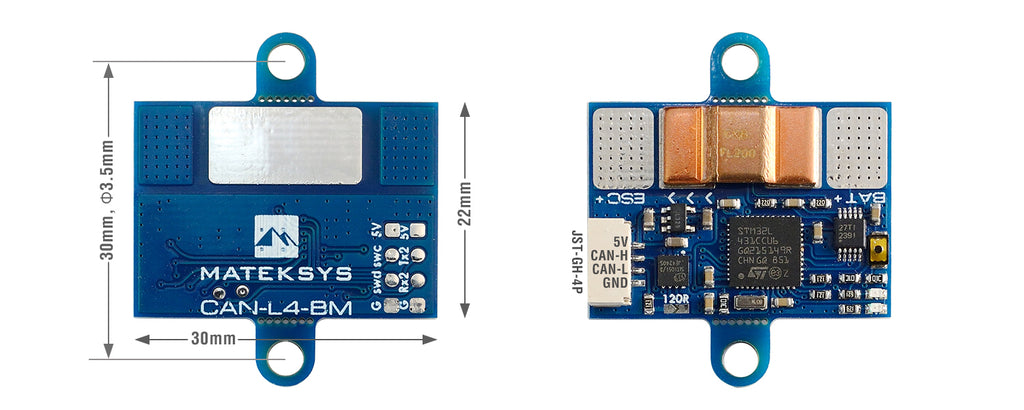

The Matek CAN-L4-BM is an ultra-precise digital power monitor based on TI INA239 and ArduPilot AP_Periph firmware. With this device, any flight controller that supports the DroneCAN protocol can easily get accurate current and voltage readouts via the CAN bus.
The resistance of the conductive path of the power monitor is typically 200μΩ, providing for minimal power loss in the application.
|Current Sensing Range||0-204.8A|
|Voltage Sensing Range||0-85V DC|
|Max Load Current||150A Continuous, 204.8A Burst|
|Weight||4g (sensor board only)|
