The NewBeeDrone Infinity AIO V2 Pro is truly the next level solution for flight controllers and ESCs. Based on data from the Infinity AIO V1, not only was the AIO solution more compact, but there were also less issues compared to stacks.

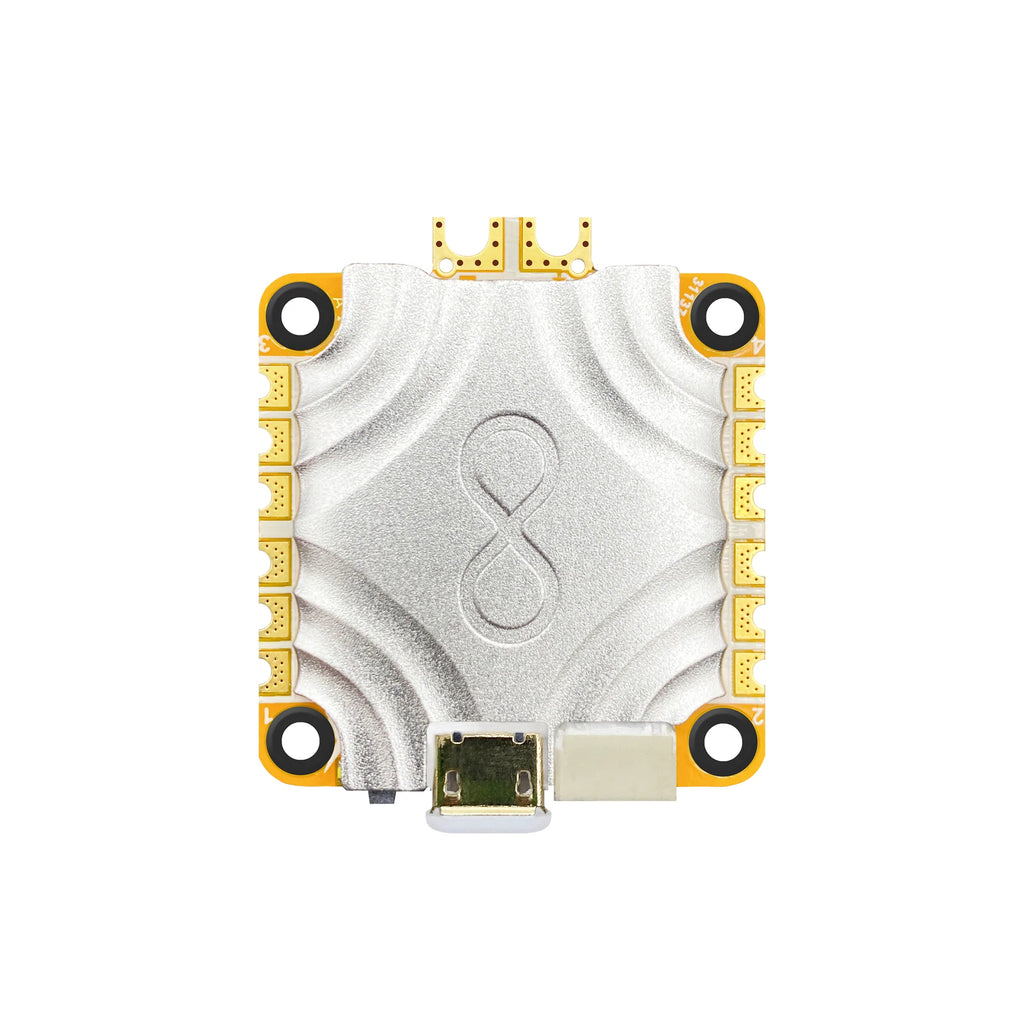

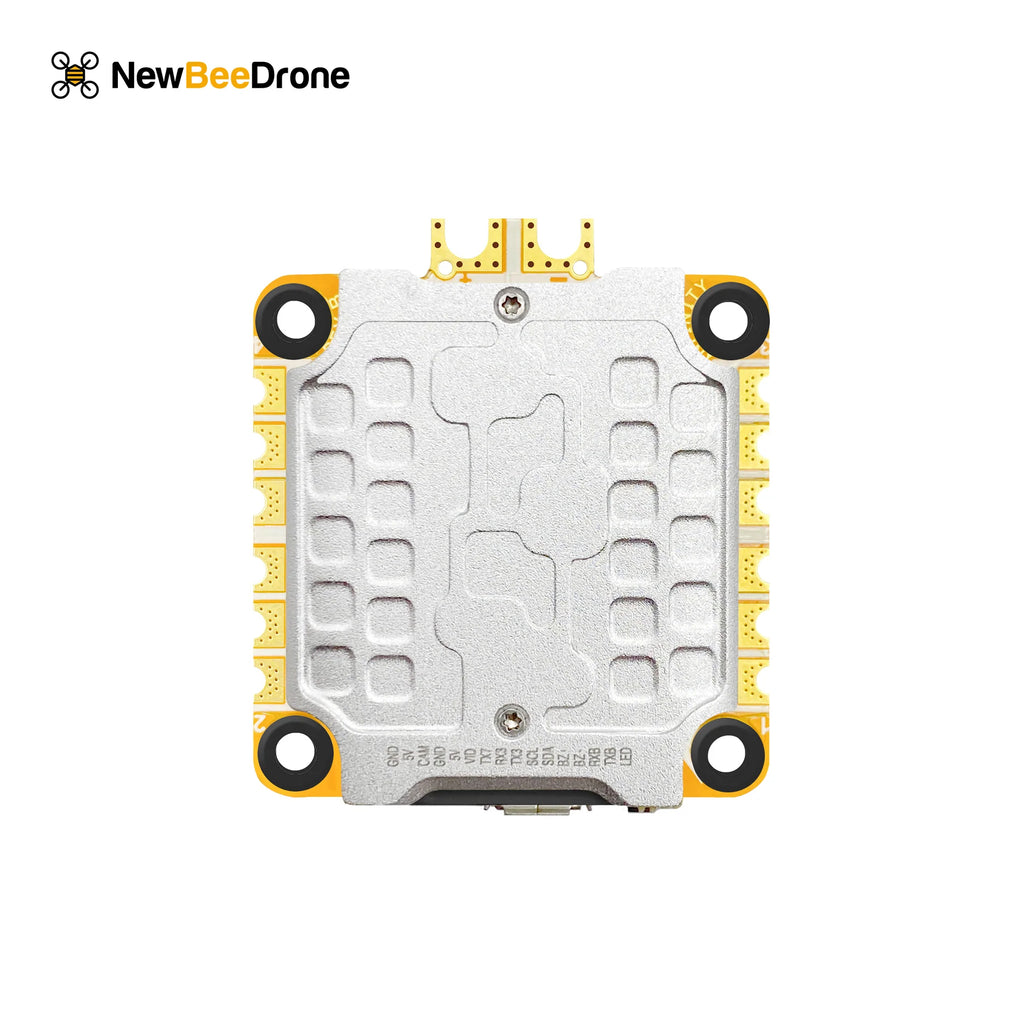

NewBeeDrone have invested immense amount of R&D time to optimize the hardware between high current and signal processing layout to make the board extremely compact and with no interference. Additionally, by sealing every component inside the aluminum heatsink which acts like a shield to protect from dusts and other conditions, they have maximized the physical toughness of the AIO stack.
The Infinity AIO V2 Pro features dual-gyro for better flight handling. Dual gyros allows device redundancy and also measurement redundancy. Having two gyros mounted to each other, the flight controller is able to cancel out effects of a noisy axis on one of the IMU’s to better handle strong winds and gusts, allowing smoother flight capabilities for filming aerial views.
|Input Voltage||3S-6S LiPo|
|Max Current||55A continuous, 65A burst|
|Dimensions||37x37x5mm (30.5x30.5mm mounting)|
