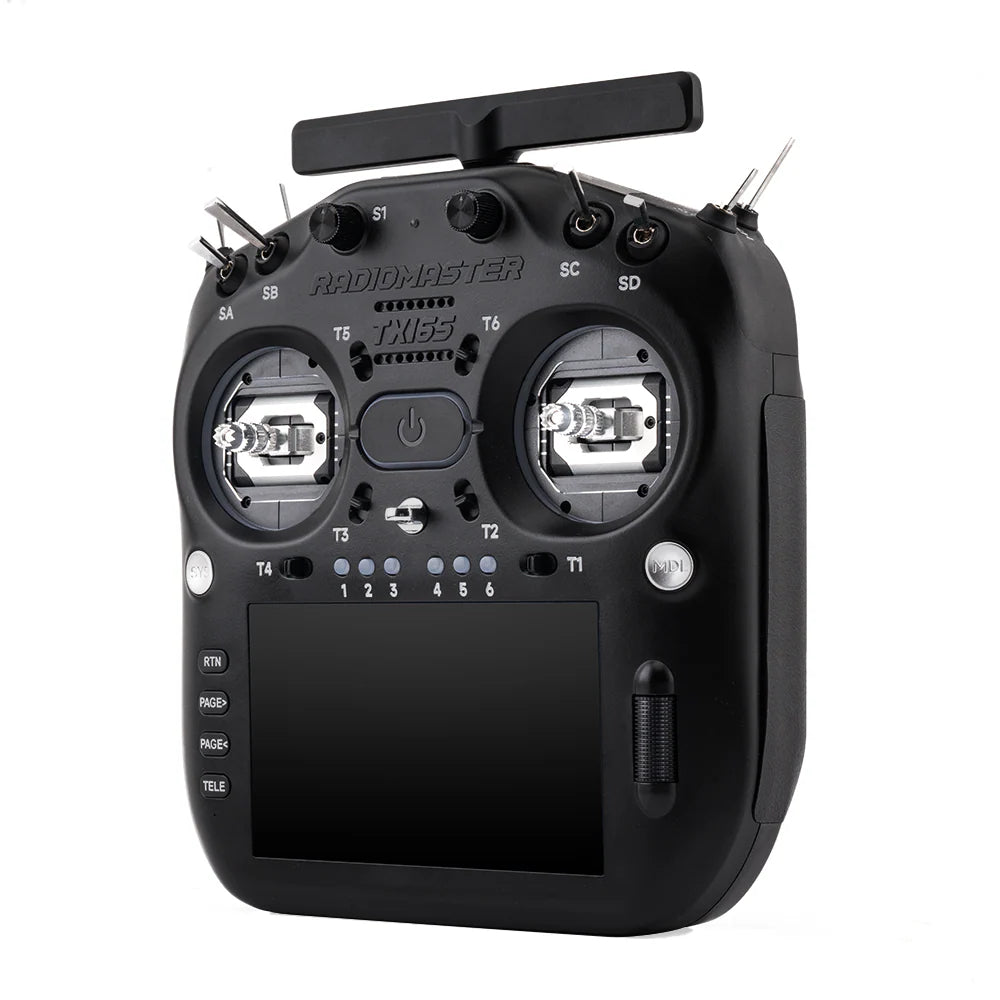

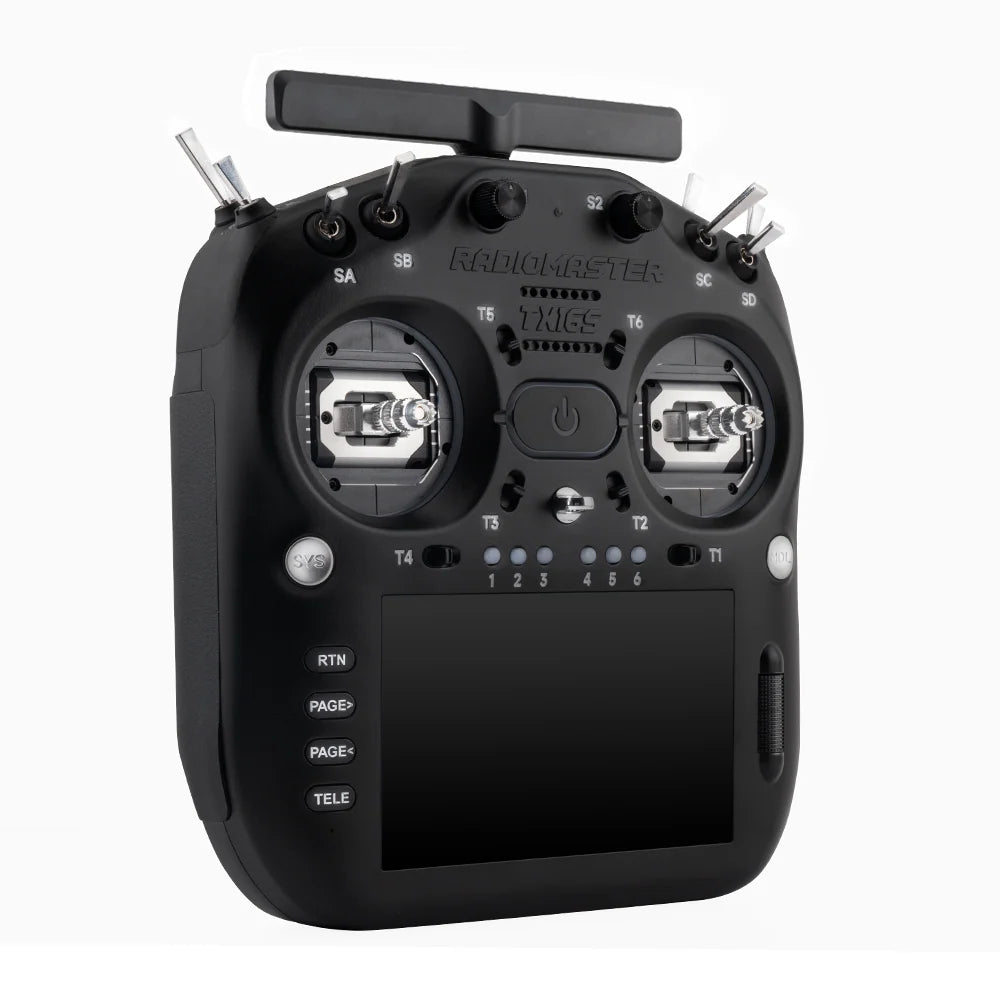

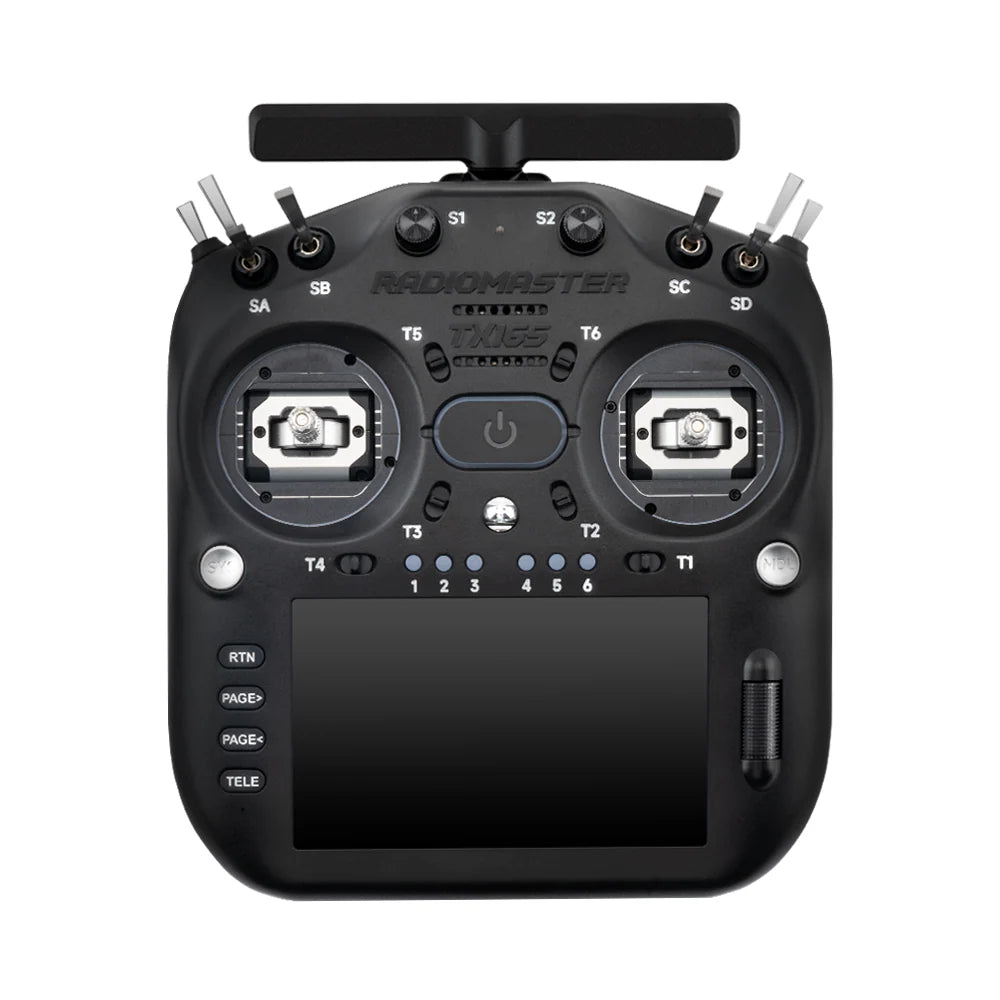

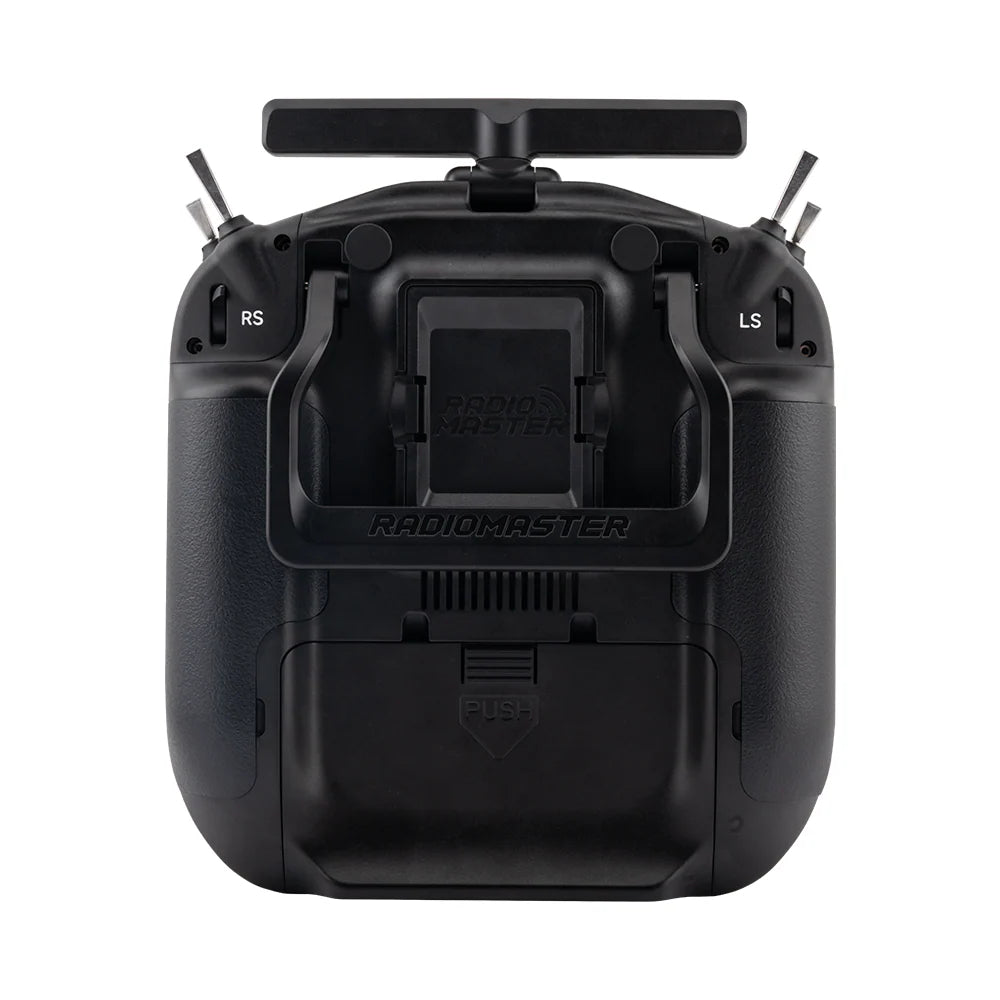

RadioMaster TX16S MK3
RadioMaster continues to lead open-source RC innovation, building on the trusted global legacy of the TX16S series. The TX16S MK3 elevates performance, precision, and ergonomics to new levels.
Features
- High-Performance MCU: Powered by the STM32 H7 chip for maximum processing power.
- Touchscreen Display: 5-inch, 800 x 480 IPS touchscreen with vivid colors and sharp detail.
-

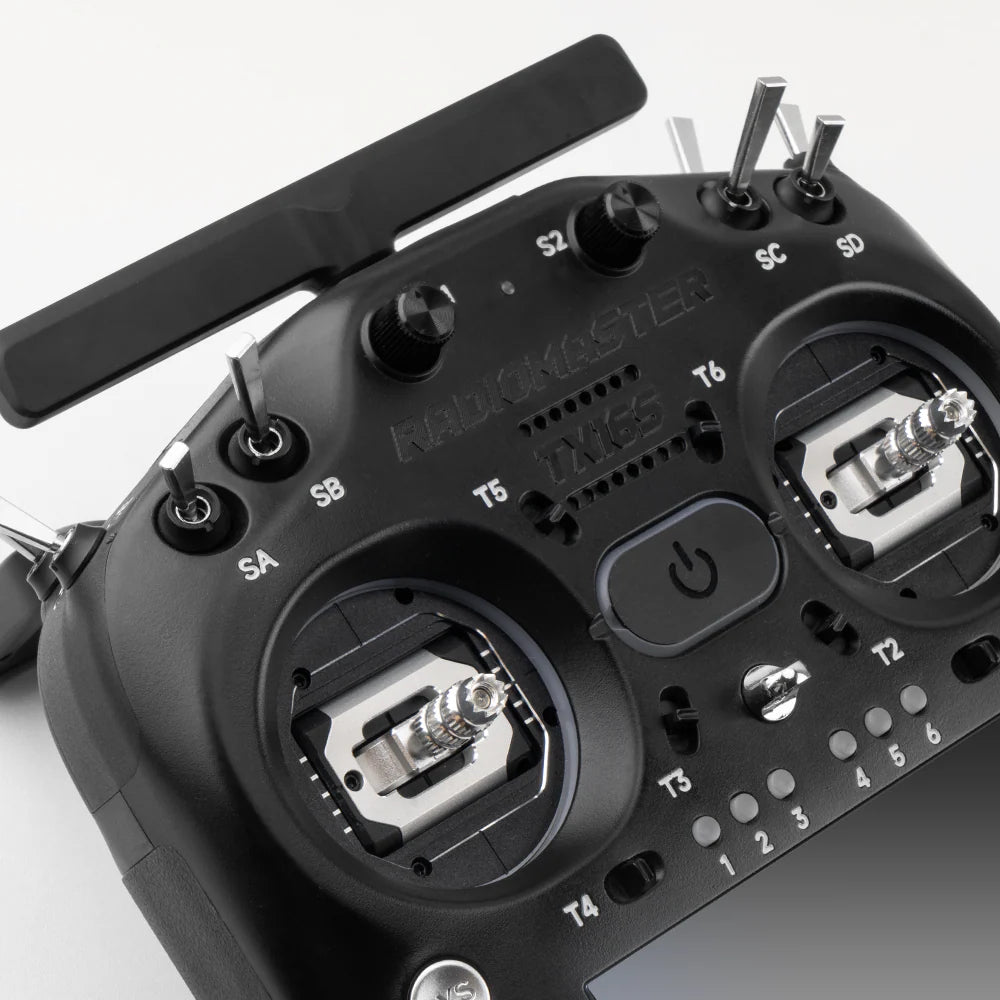

Precision Gimbals: V6 quad-bearing Hall sensor gimbals (AG02 compatible)
RGB Programmable Gimbal Light Rings: LUA-controlled, customizable LED gimbal lighting. - Internal RF Module: Dual-band Gemini 2.4GHz and Sub-G 900MHz
- Smart Balance Battery Circuit: Maximizes battery efficiency and longevity for better battery life.
- Powerful Cooling System: Low-noise, high-output fans and an aluminum heat sink keep your radio cool, even on the hottest days.
- Digital audio: Greater sound quality and reduced interference.
- Dual Foldable Antennas: Compact and easy to store without compromising signal strength.
- Built-in Microphone: For future feature expansion.
- Automatic back light adjustment: Makes the screen easier to read indoors and out.
- Built-in Motion Sensor: Trigger switches, pan/tilt cameras, or telemetry callouts simply by tilting your radio.

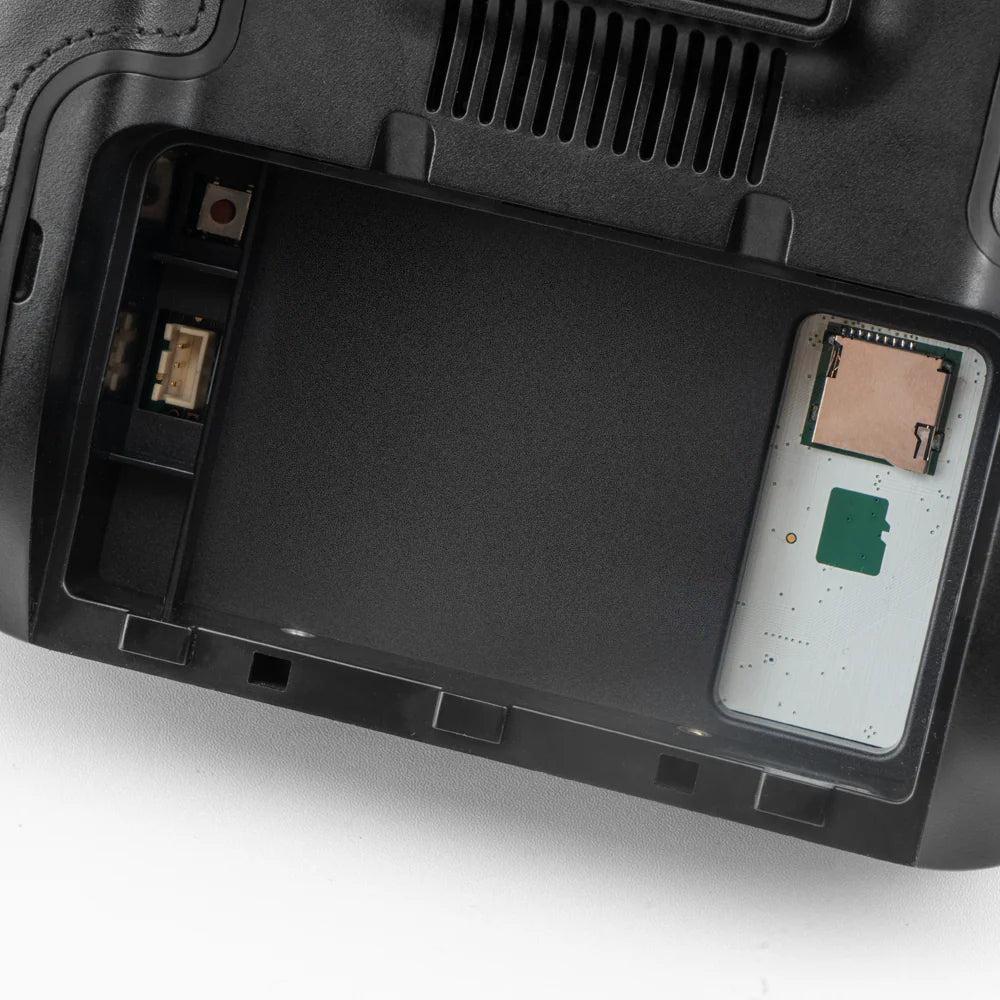

- Storage: Built-in flash memory with external SD card support.
-
Removable shoulder switch panels: Customize your setup with modular switch panels.





| Radio Protocol | ELRS |
| Radio Frequency | ISM 2.4GHz & Sub-G 900MHz |
| Channels | 16 maximum (receiver dependent) |
| Input Voltage | 6.6-8.4V DC |
| Battery | 2S LiPo or (2) 18650 cells (not included) |
| Module Bay Size | JR Standard |
| Operating System | EdgeTX |
| Weight | 813g (without battery) |
| Dimensions | 200x178x88mm |
