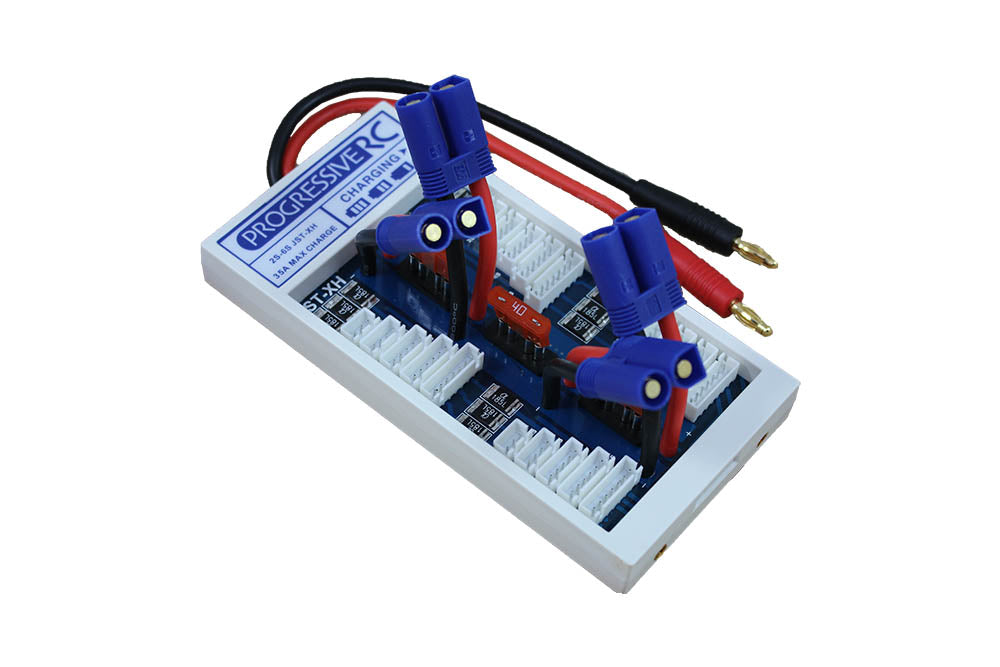

Safe Parallel Board for JST-XH & EC5
AC-SPBJ5X
- Easily and safely charge and balance up to four batteries in parallel
The perfect marriage of safety and convenience, our new safe parallel boards are ready to make charging hassles a thing of the past.
The board comes fully fuse protected, with 40A blade fuses on the main circuit and self-resetting polyfuses protecting your balance plugs. The board can handle packs from 2S-6S and is capable of charging up to four packs at once with a maximum total charge rate of 35A. Need to charge more packs? Simply daisy chain multiple boards together and there's no limit to how many you can connect.
With both main and balance cables included to connect to whatever charger you're using, this is a true plug-and-play solution.
The board comes fully fuse protected, with 40A blade fuses on the main circuit and self-resetting polyfuses protecting your balance plugs. The board can handle packs from 2S-6S and is capable of charging up to four packs at once with a maximum total charge rate of 35A. Need to charge more packs? Simply daisy chain multiple boards together and there's no limit to how many you can connect.
With both main and balance cables included to connect to whatever charger you're using, this is a true plug-and-play solution.
Read More
| Dimensions | 151x77x17mm |
| Balance Input Connectors | 2S-6S Female JST-XH (female housings with male pins) |
| Balance Output Connector | 6S Male JST-XH (male housing with female pins) |
| Input Connector (Board) | Female EC5 (female housing with male bullets) |
| Output Connector (Board) | Male 4mm Banana Plugs |
| Length (Wire) | 6" |
| Wire Type | 12 AWG main lead; 20 AWG balance lead |
