Safe Parallel Charge Board for 2S JST-PH

AC-PCB130
  • Charge up up to six Beast UMX or Blade 130 X batteries at once
$12.99

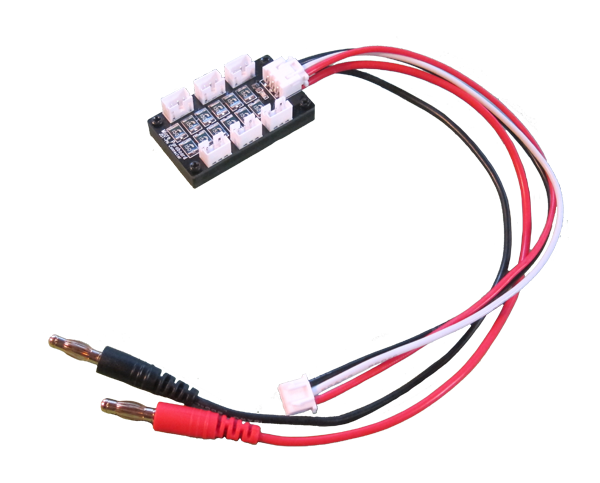

Safe Parallel Charge Board for UMX & 130 X


Compact, convenient, and safe, our Parallel Charge Board for UMX & 130 X lets you charge and balance up to six batteries at a time, while self-resetting polyfuses protect your packs from any potential shorts.

This unique design serves as both a charging and balancing board for up to 6 of your 2S battery packs. Connect to your batteries with the JST-PH connectors, as used in the Blade 130 X, Beast UMX or Sbach 342 UMX - or the new Brushless mCP X! Connect to the charger's main output with 4mm banana plugs, and to the balance port with a standard 2S JST-XH balance connector. 8" of top-quality silicone wire gives you the flexibility you need to easily get everything connected.

As safe as they are convenient, these boards protect your batteries with built in polyfuses protecting each individual cell from harmful short circuits or power surges.

Specifications
  • Input Charge Connector: Male 4mm Banana Plug
  • Input Balance Connector: Male 2S JST-XH
  • Output Connector: 6x 2S Female JST-PH
  • Wire Type: 18 AWG Silicone Charge Lead, 20 AWG Silicone Balance Lead
  • Max Charge Rating: 1.5A per battery
  • Fuse Rating: 1.5A
  • Wire Length: 8"


Read More
Read Less

How to Parallel Charge:

Parallel Charging 6 LiPo Batteries Using iCharger 206B
