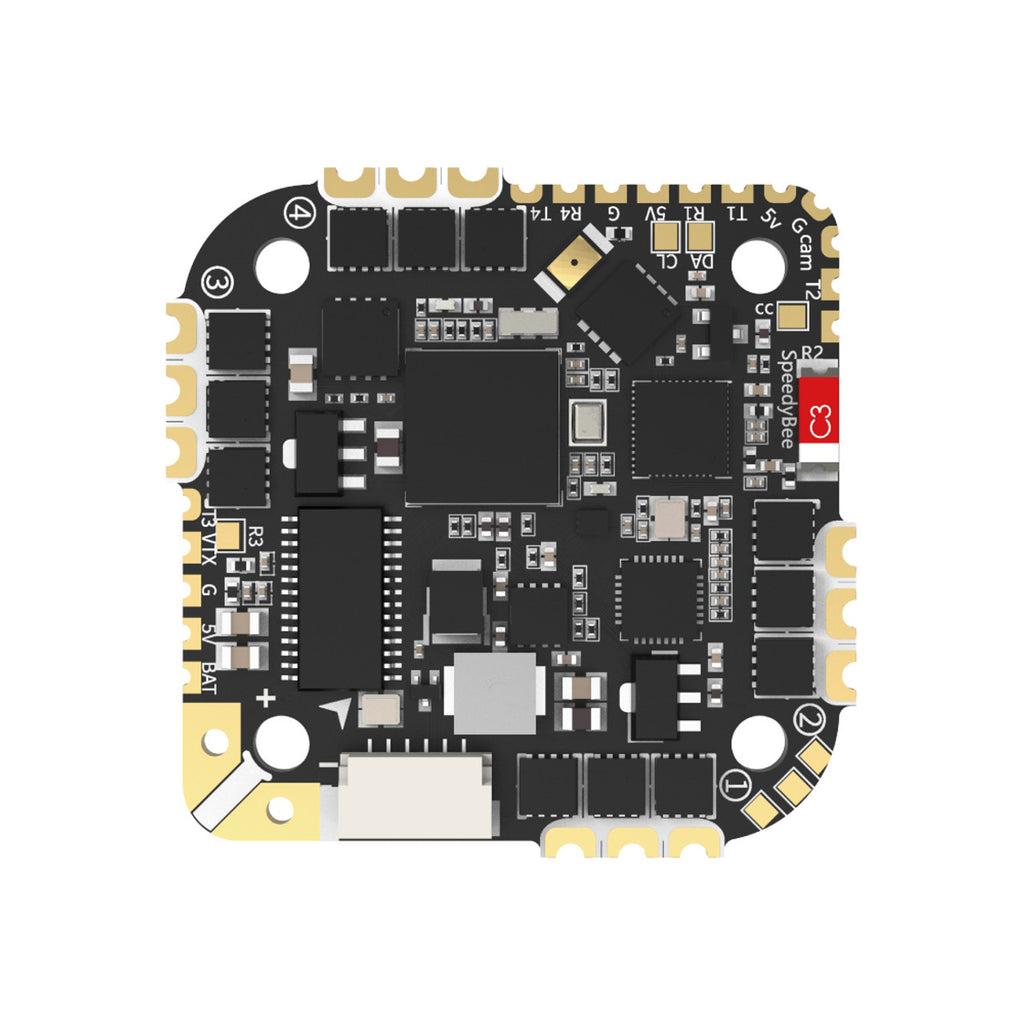

SpeedyBee F745 35A AIO
Say hello to the world's first wireless All-In-One flight controller! Make your next cinewhoop build your easiest ever with this powerful and innovative FC/ESC. No more straining to connect to a hidden USB port - with built-in Bluetooth and WiFi, you can easily connect the FC direct to your phone for configuration.
The combination of a powerful F745 flight controller and a durable 35A 6S-ready ESC means a headache-free build and smooth, high-performance flying. High quality components like Toshiba MOSFETs and Murata capacitors give you peace of mind that the board is ready to perform when you need it.
With the SpeedyBee app, you can easily turn your phone into an all-in-one FC/ESC configurator and tune your quad anytime, anywhere. Flash firmware wirelessly, change motor directions and more, with no more USB headaches.
| MCU | STM32F745 |
| IMU | MPU6000 |
| Barometer | BMP280 |
| OSD | Supported |
| WiFi/BLE | BLE/WiFi |
| DJI Support | Full DJI Air Unit connection |
| Blackbox | 8MB onboard |
| Input Voltage | 3-6S LiPo |
| BEC | (4) 5V outputs |
| USB Connection | None (solder pads available) |
| Dimensions | 36.5x36.5x7mm (25.5x25.5mm mounting, M3 hole size) |
| Weight | 10.1g |
SpeedyBee F745 AIO Manual
