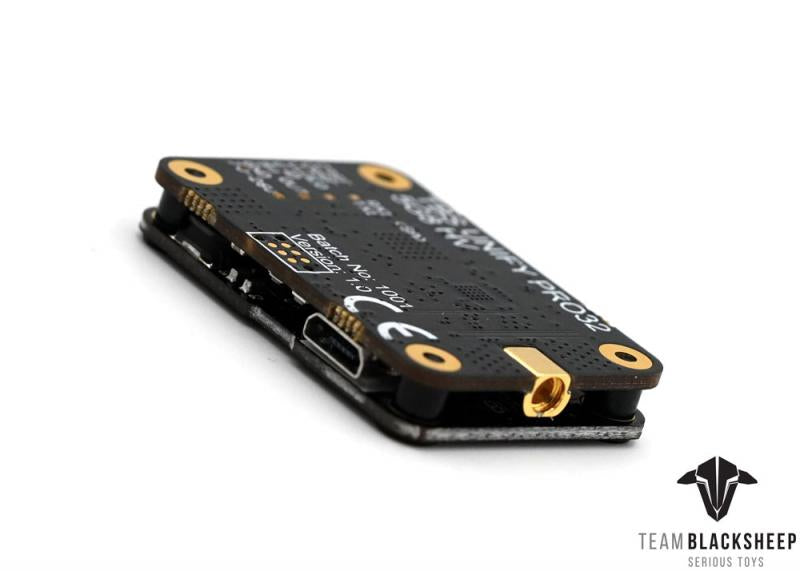

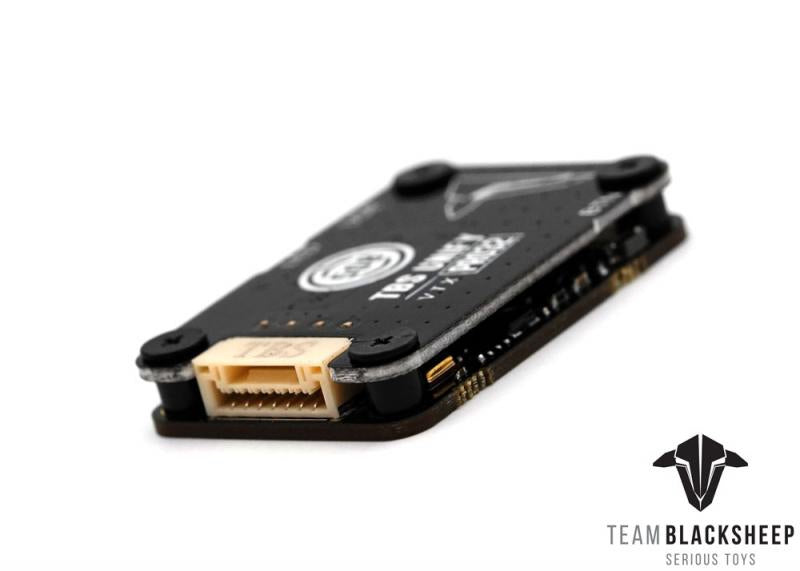

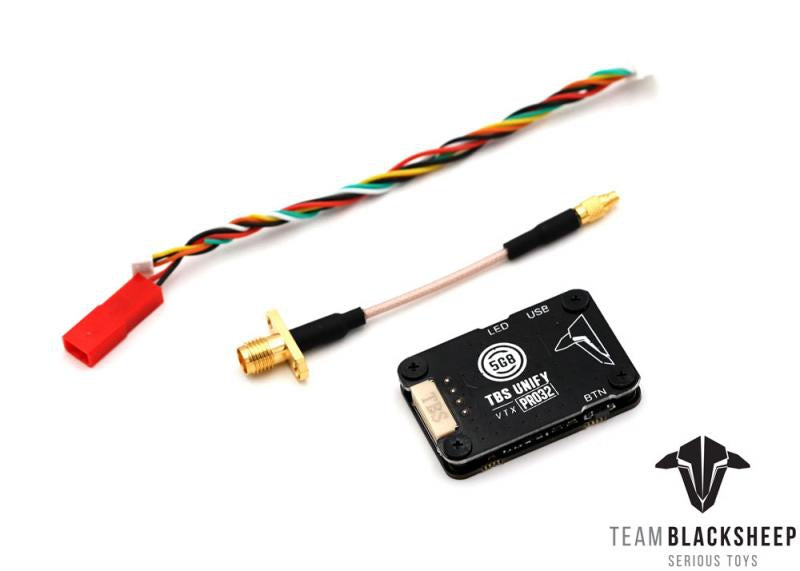

TBS Unify Pro32 HV 5.8GHz Video Transmitter

AC-TUP32
In stock
$49.99
More robust and powerful than ever, the Unify continues to be the ultimate in VTX technology

With the TBS Unify Pro32 HV, TBS have boosted the output power, improved the robustness, decreased the power consumption, added capability for insane features and perfected the way the VTX is installed in your multirotor. In a nutshell, it’s the most comprehensive, future proof, highest quality and overall best HV video transmitter ever made.

Zero interference even while powered up? It's now a possibility! If you've ever repaired a quad during a race, you'll know the frustrations of not being able to power on and test your system. With PitMode, the Unify will reduce the output power to a bare minimum (way below single digit mW) to allow you to power up your quad and still see the image! You've got less than one meter of range to put your quad through its paces before placing it on that starting grid. Using SmartAudio or CRSF, you can power up the VTX using your remote!

SmartAudio technology provides UART control for your entire video transmitter. Parameters such as output power, bands, channels and frequency can be freely controlled. This enables remote channel control directly from a smart device (TBS Crossfire, external bluetooth or wifi module required), from your radio (TBS Crossfire with TBS Tango or OpenTX compatible remote required), or from the OSD (e.g. Betaflight OSD, TBS CORE PRO). With all these options available, you ought to find something that fits your bill. Together with CleanSwitch, the sky is the limit ... jump between channels without interfering fellow pilots in air, create backup-/emergency-frequencies, global VTX power adjustments by race organizers or other clever systems aimed at streamlining and improving race management are now a possibility!

CleanSwitch is a technology developed at TBS that will ensure that your video transmitter is interference-free while powering on, or while changing channels. All current video transmitters swipe across the entire band while being powered on, often resulting in flickering and heavy interference to anyone in the air, regardless of video channel chosen. TBS CleanSwitch will allow you to power on and change channels while your buddies are in the air, without any external interference. CleanSwitch is race friendly, and pilot friendly!

NOTE: An antenna must be installed properly before power is applied to the transmitter. Powering on without a correctly installed antenna may easily burn the transmitter. Power spikes from other components such as ESC's can also damage the transmitter if powered directly from battery voltage. Such damage will not be covered under warranty.

Video Transmission Legality: The use and operation of this product in the USA and many other countries may require a license. Some countries may not allow its use at all. In the USA you must have a HAM radio license to use this transmitter above the 25mW power level. It is the responsibility of the end user to comply with all applicable laws and regulations of their government.

Read More
Read Less
Power 25/100/400/1000+mW
Input Voltage 6-25V DC
Dimensions 37x25x5.8mm
Connector (Antenna) MMCX
Frequency 5.8GHz
Video Format NTSC/PAL
Weight 8.7g
