This module lets you connect two packs in parallel, using whatever connectors you choose to solder on to the leads. Use it alone or as part of a larger modular setup!

$8.99

Quantity:

Quantity must be 1 or more

Description
Videos

Description

Universal Modular Charge Board

The latest revolution in parallel charging, our modular charge boards let you create the parallel board that you need. Mix and match any combination of main and balance connectors, and daisy-chain as many boards together as you need, with the added benefit of fuse protection for every connection.

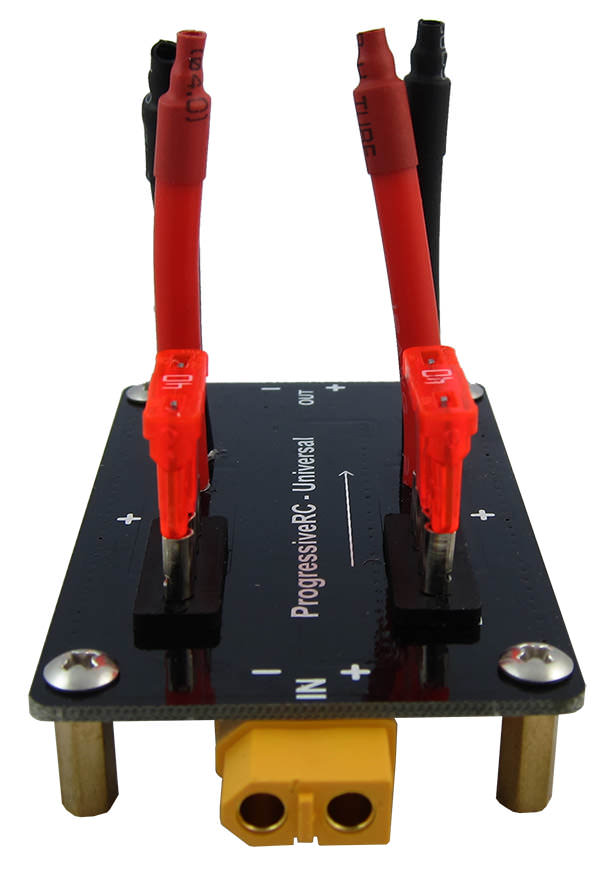

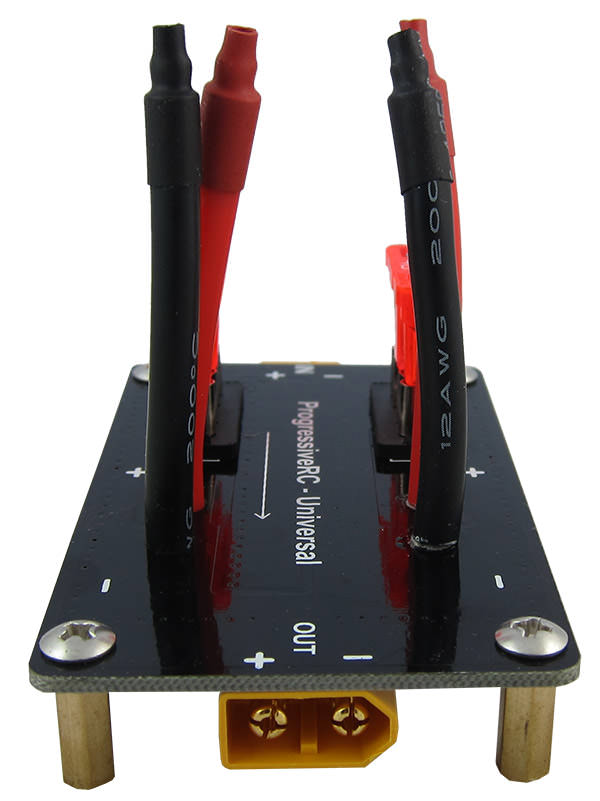

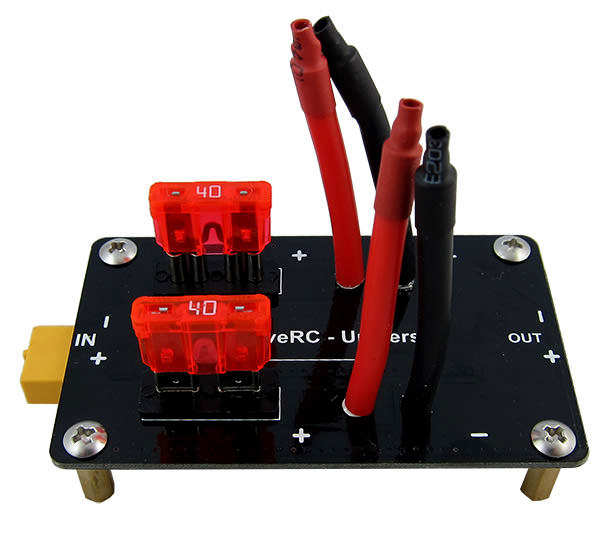

This Universal Modular Charge Board gives you two sets of bare wire leads wired in parallel, for you to solder on any connector you need. Ready to attach to any of our modular balance boards, it's easy to create a fully customized parallel charging system. Connect it directly to your charger to charge two packs in parallel, or combine it with other modular boards to create one larger parallel board. With connections rated for charge rates up to 40A, you'll never go back to charging single batteries again.

To connect this board to your charger, you'll need a basic XT60 Charge Cable to go from the XT60 output to your charger's banana plugs. Or if you already have another modular board, just connect to the female XT60 on that board to daisy-chain them together - no matter how many you connect together, you'll always need just one hookup to your charger.

Specifications

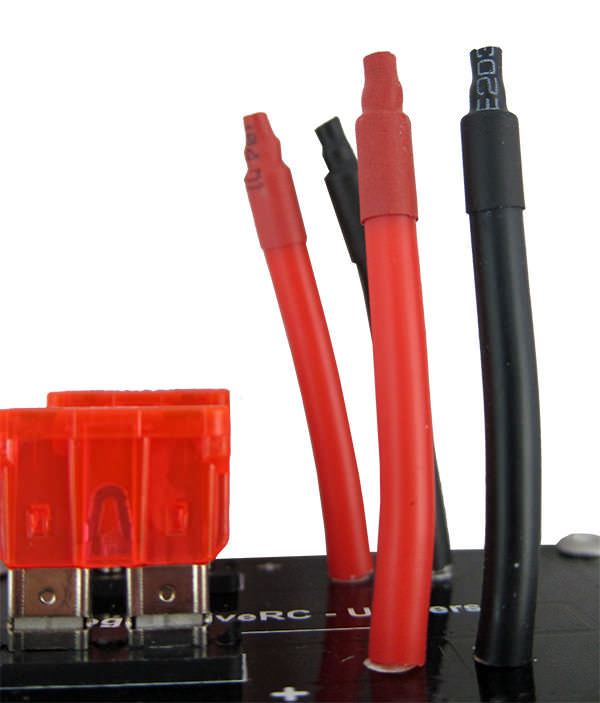

Charge Input Connectors: 12 AWG Bare Wire Leads
Bare Wire Lead Length: 5cm
Charge Output Connector: Male XT60
Board Dimensions: 80 x 48 x 35mm

Videos

Module boards

All products that I have purchased from progressive are perfect .if a problem they solve within minutes. CHAD IS OUTSTANDING

Difficult to solder

I’m pretty good with soldering however I wouldn’t recommend this if you aren’t. The leads are just a bit on the short side. I decided to just add onto what was there. By the time you cut off the tinned end to get back to bare wire your dealing with a difficult task. I’m sure once I’m done it will be worth it. I wanted the leads to be long enough to allow me to charge my batteries inside a lipo safe pouch. Also I wanted the complete module/balance board to sit flat without the batteries to make it “flip” or sit lop sided. Over all I’m happy yet frustrated.

Excellent!

Very quck delivery! The board itself is very well thought out, and constructed of high quality materials. The wires come pre-tinned so soldering is a breeze. Very easy to integrate and daisy chain with other modular boards. Really Happy with the performance during charging!

Universal Modular Charge Board SKU: AC-MCBU

Fast delivery and high quality components. Will be using these boards to balance charge my 7s LIPO packs . The universal options allows me to to install connectors of my choice for a custom build. Thanks Progressive your the best when it come to components for charging LIPO's .
